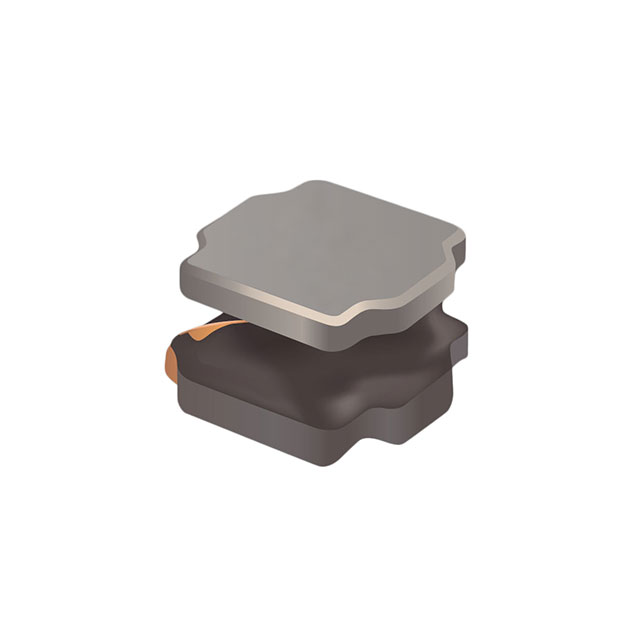

SRN6045TA-221M
ActiveBourns Inc.
INDUCTOR, AEC-Q200, 220UH, 0.6A, 20%
Deep-Dive with AI
Search across all available documentation for this part.
SRN6045TA-221M
ActiveBourns Inc.
INDUCTOR, AEC-Q200, 220UH, 0.6A, 20%
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRN6045TA-221M |
|---|---|
| Current - Saturation (Isat) | 880 mA |
| Current Rating (Amps) | 600 mA |
| DC Resistance (DCR) | 900 mOhm |
| Frequency - Self Resonant | 5 MHz |
| Height - Seated (Max) | 4.5 mm |
| Height - Seated (Max) [Max] | 0.177 " |
| Inductance | 220 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 1 MHz, 15 |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.236 in |
| Size / Dimension [x] | 6 mm |
| Size / Dimension [y] | 0.236 in |
| Size / Dimension [y] | 6 mm |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.54 | |
| 10 | $ 0.46 | |||
| 25 | $ 0.42 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.28 | |||
| Digi-Reel® | 1 | $ 0.54 | ||
| 10 | $ 0.46 | |||
| 25 | $ 0.42 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.28 | |||
| Tape & Reel (TR) | 1000 | $ 0.25 | ||
| 3000 | $ 0.24 | |||
| 5000 | $ 0.23 | |||
| 10000 | $ 0.22 | |||
| 25000 | $ 0.22 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.61 | |
| 10 | $ 0.45 | |||
| 25 | $ 0.43 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.39 | |||
Description
General part information
SRN6045TA Series
The SRN6045TA-221M from Bourns is a SRN6045TA series SMD semi shielded power inductor. It is typically used in applications such as driver assistant, infotainment, lighting DC to DC converters, power supplies, digital video cameras, HDDs, smartphones, televisions and LCD displays.
