PSD-24-4
ActiveBANNER ENGINEERING

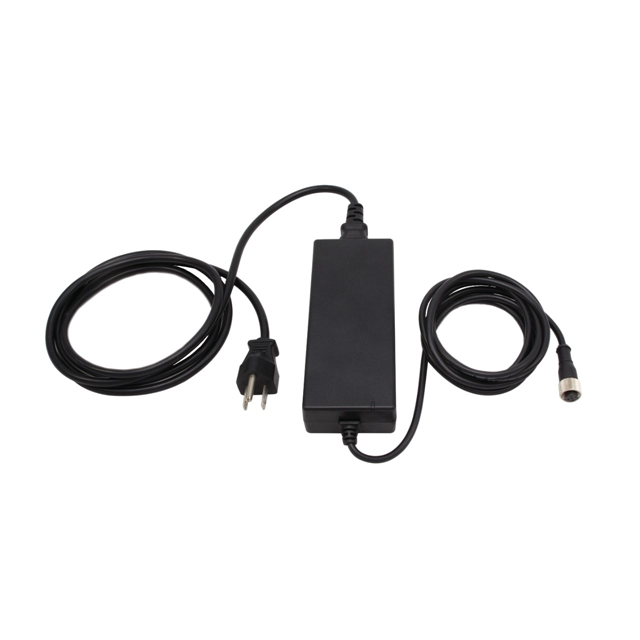

AC/DC POWER SUPPLY, ITE, 1 OUTPUT, 96 W, 24 V, 3.9 A
Deep-Dive with AI
Search across all available documentation for this part.
PSD-24-4
ActiveBANNER ENGINEERING
AC/DC POWER SUPPLY, ITE, 1 OUTPUT, 96 W, 24 V, 3.9 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PSD-24-4 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CE |
| Cord Length | 78 " |
| Cord Length | 1.98 m |
| Current - Output (Max) [Max] | 3.9 A |
| Efficiency | 85 % |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | 4 Pin |
| Output Connector | Power DIN |
| Power (Watts) | 94 W |
| Region Utilized | International |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PSD-24 Series
24V 94 W AC/DC External Desktop (Class I) Adapter Cord Input
Documents
Technical documentation and resources
