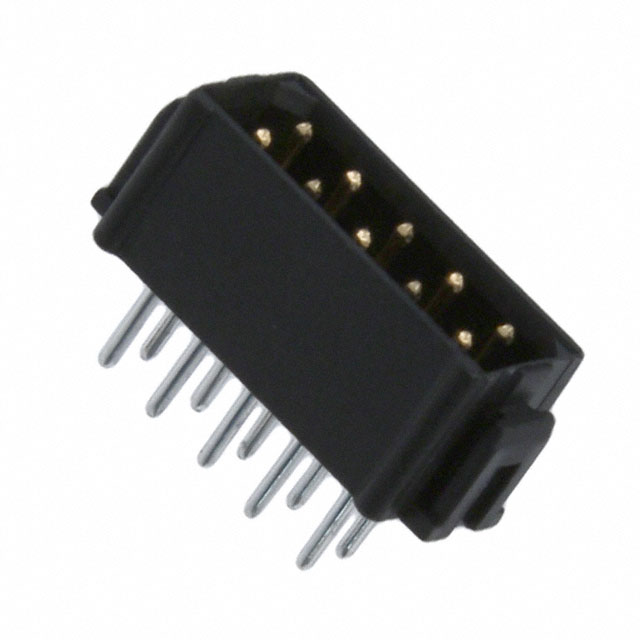

M80-8541042

Active

Harwin Inc.

PIN HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M80-001 +6

M80-8541042

Active

Harwin Inc.

PIN HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE

Deep-Dive with AI

DocumentsDatasheet M80-001 +6

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8541042

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Height	5.56 mm
Insulation Height [z]	0.219 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	13.51 mm, 7.85 mm, 10.2 mm, 7.23 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-854 Series

Part	Contact Type	Number of Positions Loaded	Connector Type	Insulation Color	Mounting Type	Contact Finish - Mating	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Termination	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Mated Stacking Heights	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Number of Positions	Style	Insulation Height [z]	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Shrouding	Material Flammability Rating	Insulation Material	Fastening Type
Harwin Inc. M80-8541442	Male Pin	All	Header	Black	Through Hole	Gold	Circular	-55 °C	125 °C	0.118 in	3 mm	Solder	2.2 A	29.5 Áin	0.75 Ám	Tin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	800 V	0.079 in	2 mm	Phosphor Bronze	14	Board to Board Cable	0.219 in	5.56 mm	0.079 in	2 mm	3 µm	118.1 µin	2	Shrouded - 4 Wall	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Latch Holder
Harwin Inc. M80-8540842	Male Pin	All	Header	Black	Through Hole	Gold	Circular	-55 °C	125 °C	0.118 in	3 mm	Solder	2.2 A	29.5 Áin	0.75 Ám	Tin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	800 V	0.079 in	2 mm	Phosphor Bronze	8	Board to Board Cable	0.219 in	5.56 mm	0.079 in	2 mm	3 µm	118.1 µin	2	Shrouded - 4 Wall	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Latch Holder
Harwin Inc. M80-8543445	Male Pin	All	Header	Black	Through Hole	Gold	Circular	-55 °C	125 °C	0.118 in	3 mm	Solder	2.2 A	29.5 Áin	0.75 Ám	Gold	7.23 mm 7.85 mm 10.2 mm 13.51 mm	800 V	0.079 in	2 mm	Phosphor Bronze	34	Board to Board Cable	0.219 in	5.56 mm	0.079 in	2 mm			2	Shrouded - 4 Wall	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Latch Holder
Harwin Inc. M80-8542645	Male Pin	All	Header	Black	Through Hole	Gold	Circular	-55 °C	125 °C	0.118 in	3 mm	Solder	2.2 A	29.5 Áin	0.75 Ám	Gold	7.23 mm 7.85 mm 10.2 mm 13.51 mm	800 V	0.079 in	2 mm	Phosphor Bronze	26	Board to Board Cable	0.219 in	5.56 mm	0.079 in	2 mm			2	Shrouded - 4 Wall	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Latch Holder
Harwin Inc. M80-8544442	Male Pin	All	Header	Black	Through Hole	Gold	Circular	-55 °C	125 °C	0.118 in	3 mm	Solder	2.2 A	29.5 Áin	0.75 Ám	Tin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	800 V	0.079 in	2 mm	Phosphor Bronze	44	Board to Board Cable	0.219 in	5.56 mm	0.079 in	2 mm	3 µm	118.1 µin	2	Shrouded - 4 Wall	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Latch Holder
Harwin Inc. M80-8541042	Male Pin	All	Header	Black	Through Hole	Gold	Circular	-55 °C	125 °C	0.118 in	3 mm	Solder	2.2 A	29.5 Áin	0.75 Ám	Tin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	800 V	0.079 in	2 mm	Phosphor Bronze	10	Board to Board Cable	0.219 in	5.56 mm	0.079 in	2 mm	3 µm	118.1 µin	2	Shrouded - 4 Wall	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Latch Holder
Harwin Inc. M80-8542642	Male Pin	All	Header	Black	Through Hole	Gold	Circular	-55 °C	125 °C	0.118 in	3 mm	Solder	2.2 A	29.5 Áin	0.75 Ám	Tin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	800 V	0.079 in	2 mm	Phosphor Bronze	26	Board to Board Cable	0.219 in	5.56 mm	0.079 in	2 mm	3 µm	118.1 µin	2	Shrouded - 4 Wall	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Latch Holder
Harwin Inc. M80-8540645	Male Pin	All	Header	Black	Through Hole	Gold	Circular	-55 °C	125 °C	0.118 in	3 mm	Solder	2.2 A	29.5 Áin	0.75 Ám	Gold	7.23 mm 7.85 mm 10.2 mm 13.51 mm	800 V	0.079 in	2 mm	Phosphor Bronze	6	Board to Board Cable	0.219 in	5.56 mm	0.079 in	2 mm			2	Shrouded - 4 Wall	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Latch Holder
Harwin Inc. M80-8540642	Male Pin	All	Header	Black	Through Hole	Gold	Circular	-55 °C	125 °C	0.118 in	3 mm	Solder	2.2 A	29.5 Áin	0.75 Ám	Tin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	800 V	0.079 in	2 mm	Phosphor Bronze	6	Board to Board Cable	0.219 in	5.56 mm	0.079 in	2 mm	3 µm	118.1 µin	2	Shrouded - 4 Wall	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Latch Holder
Harwin Inc. M80-8540442	Male Pin	All	Header	Black	Through Hole	Gold	Circular	-55 °C	125 °C	0.118 in	3 mm	Solder	2.2 A	29.5 Áin	0.75 Ám	Tin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	800 V	0.079 in	2 mm	Phosphor Bronze	4	Board to Board Cable	0.219 in	5.56 mm	0.079 in	2 mm	3 µm	118.1 µin	2	Shrouded - 4 Wall	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Latch Holder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.19
		18	$ 2.90
		108	$ 2.55
		504	$ 2.17
		1008	$ 1.85
		5004	$ 1.66
Newark	Each	1	$ 3.01
		10	$ 2.73
		50	$ 2.46
		100	$ 2.31
		250	$ 2.16
		500	$ 2.05
		1000	$ 1.94
		2500	$ 1.85

Description

General part information

M80-854 Series

Connector Header Through Hole 10 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

M80-001

M80-0110001

M80-8541042
