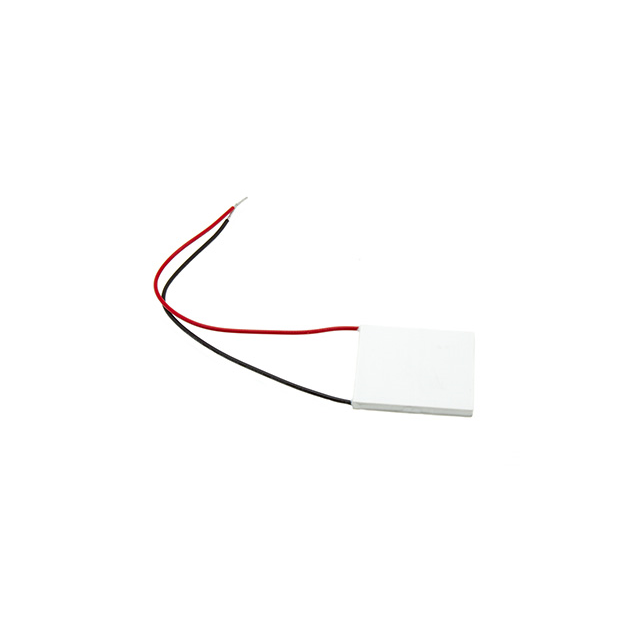

TEC1-19913L-S
ActiveEuropean Thermodynamics Ltd
TE HIGH TEMP,199 COUPLES,13A,SIL
TEC1-19913L-S
ActiveEuropean Thermodynamics Ltd
TE HIGH TEMP,199 COUPLES,13A,SIL
Description
General part information
TEC1-19913 Series
Peltier Module 200.0W @ 27°C 13 A
Technical Specifications
Parameters and characteristics for this part
| Specification | TEC1-19913L-S |
|---|---|
| Current - Max | 13 A |
| Delta Tmax | 68 °C |
| Height | 3.5 mm |
| Maximum Power Dissipation (Qmax) | 200 W |
| Number of Stages | 1 |
| Size / Dimension Length | 50 mm |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 50 mm |
| Type | TEC (Thermoelectric Cooler) |
| Voltage - Max | 24.1 V |
