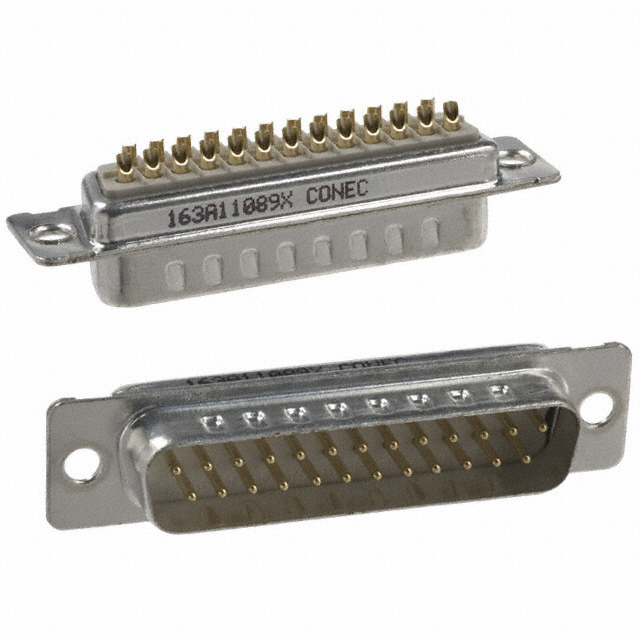

163A11089X

Active

Amphenol CONEC

D SUB CONN, PLUG, DB, SOLDER CUP ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

D SUB CONN, PLUG, DB, SOLDER CUP ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	163A11089X

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Voltage Rating	125 VDC
Wire Gauge	20 AWG

Part	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Current Rating (Amps)	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Dielectric Material	Connector Type	Mounting Type	Contact Type	Number of Rows	Connector Style	Color	Features	Material Flammability Rating	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Shell Size, Connector Layout
Amphenol CONEC 163A11069X	Housing/Shell (Unthreaded)	DE E	1	125 VDC	7.5 A	Gold	-55 °C	125 °C	20 AWG	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	Free Hanging (In-Line)	Signal	2	D-Sub	Black	Grounding Indents	UL94 V-0	Copper Alloy	8 çin	0.203 çm	9
Amphenol CONEC 163A11079X	Housing/Shell (Unthreaded)			125 VDC	7.5 A	Gold	-55 °C	125 °C	20 AWG	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	Free Hanging (In-Line)	Signal	2	D-Sub	Black	Grounding Indents	UL94 V-0	Copper Alloy	8 çin	0.203 çm	15	2
Amphenol CONEC 163A11089X	Housing/Shell (Unthreaded)	B DB	3	125 VDC	7.5 A	Gold	-55 °C	125 °C	20 AWG	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	Free Hanging (In-Line)	Signal	2	D-Sub	Black	Grounding Indents	UL94 V-0	Copper Alloy	8 çin	0.203 çm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector
