LTC7801IFE#TRPBF
Active150V LOW IQ, SYNCHRONOUS STEP-DOWN DC/DC CONTROLLER
Deep-Dive with AI
Search across all available documentation for this part.
LTC7801IFE#TRPBF
Active150V LOW IQ, SYNCHRONOUS STEP-DOWN DC/DC CONTROLLER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTC7801IFE#TRPBF |
|---|---|
| Clock Sync | False |
| Control Features | Tracking, Current Limit, Soft Start, Power Good |
| Duty Cycle (Max) [Max] | 100 % |
| Frequency - Switching [Max] | 900 kHz |
| Frequency - Switching [Min] | 50 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Package / Case | 0.173 in |

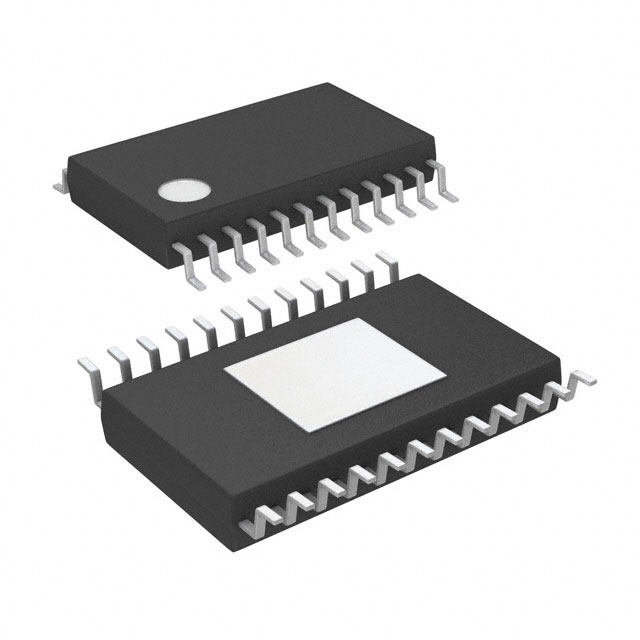

| Package / Case | Exposed Pad, 24-TSSOP |
| Package / Case [y] | 4.4 mm |
| Supplier Device Package | 24-TSSOP |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) [Max] | 140 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 15.19 | |
| 10 | $ 10.84 | |||
| 25 | $ 9.72 | |||
| 100 | $ 8.48 | |||
| 250 | $ 7.87 | |||
| 500 | $ 7.50 | |||
| 1000 | $ 7.38 | |||
| Digi-Reel® | 1 | $ 15.19 | ||
| 10 | $ 10.84 | |||
| 25 | $ 9.72 | |||
| 100 | $ 8.48 | |||
| 250 | $ 7.87 | |||
| 500 | $ 7.50 | |||
| 1000 | $ 7.38 | |||
| Tape & Reel (TR) | 2500 | $ 7.38 | ||
Description
General part information
LTC7801 Series
The LTC7801 is a high performance step-down switching regulator DC/DC controller that drives an all N-channel synchronous power MOSFET stage that can operate from input voltages up to 140V. A constant frequency current mode architecture allows a phase-lockable frequency of up to 850kHz.The gate drive voltage can be programmed from 5V to 10V to allow the use of logic or standard-level FETs to maximize efficiency. An integrated switch in the top gate driver eliminates the need for an external bootstrap diode. An internal charge pump allows for 100% duty cycle operation.The low 40μA no-load quiescent current extends operating run time in battery-powered systems. OPTI-LOOP®compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC7801 features a precision 0.8V reference and power good output indicator. The output voltage can be programmed between 0.8V to 60V using external resistors.APPLICATIONSAutomotive and Industrial Power SystemsHigh Voltage Battery Operated SystemsTelecommunications Power Systems
