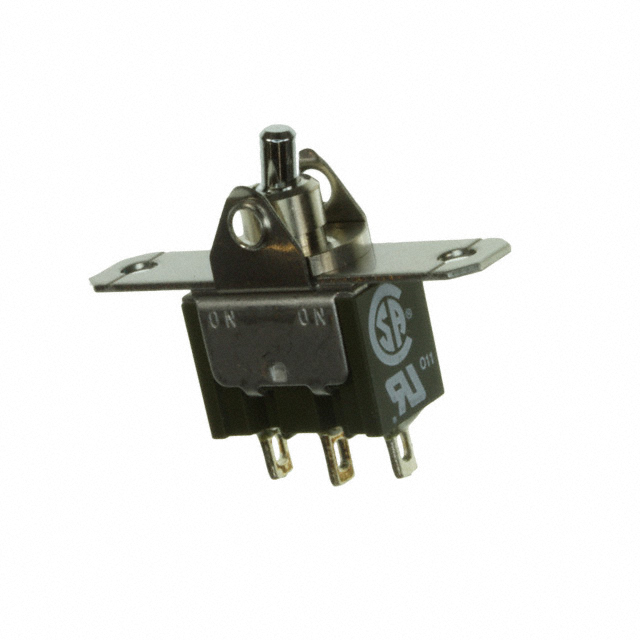

M2012TNW01/UC

Obsolete

NKK Switches

SWITCH ROCKER SPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2012TNW01/UC

Actuator Marking	Varies by Cap
Actuator Type	Actuator Arm, Cap Required
Approval Agency	CSA, UL
Circuit	SPDT
Current Rating (Amps)	6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mounting Type	Panel Mount, Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

M2012TN Series

Part	Actuator Type	Actuator Marking	Circuit	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Color - Actuator/Cap	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Features	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Mounting Type	Voltage Rating - DC
NKK Switches M2012TNW01/UC-DA	Concave (Standard V)	No Marking	SPDT	Solder Lug	17.8 mm	10.1 mm	Black	On-On	6 A	125 V	Epoxy Sealed Terminals	CSA UL	-30 ░C	85 °C	25000 Steps	Flange Panel Mount
NKK Switches M2012TNW01-DF	Concave (Standard V)	No Marking	SPDT	Solder Lug	17.8 mm	10.1 mm	Green	On-On	4 A 6 A	125 V	Epoxy Sealed Terminals	CSA UL	-30 ░C	85 °C	25000 Steps	Flange Panel Mount	30 V
NKK Switches M2012TNW01-EA	Paddle	No Marking	SPDT	Solder Lug	17.8 mm	10.1 mm	Black	On-On	4 A 6 A	125 V	Epoxy Sealed Terminals	CSA UL	-30 ░C	85 °C	25000 Steps	Flange Panel Mount	30 V
NKK Switches M2012TNW03-DA	Concave (Standard V)	No Marking	SPDT	PC Pin	17.8 mm	10.1 mm	Black	On-On	4 A 6 A	125 V	Epoxy Sealed Terminals	CSA UL	-30 ░C	85 °C	25000 Steps	Flange Panel Mount	30 V
NKK Switches M2012TNW01-DA	Concave (Standard V)	No Marking	SPDT	Solder Lug	17.8 mm	10.1 mm	Black	On-On	4 A 6 A	125 V	Epoxy Sealed Terminals	CSA UL	-30 ░C	85 °C	25000 Steps	Flange Panel Mount	30 V
NKK Switches M2012TNW01-FA	Concave (Standard V)	No Marking	SPDT	Solder Lug	12.7 mm	12.4 mm	Black	On-On	4 A 6 A	125 V	Epoxy Sealed Terminals	CSA UL	-30 ░C	85 °C	25000 Steps	Flange Panel Mount	30 V
NKK Switches M2012TNW03-EA	Paddle	No Marking	SPDT	PC Pin	17.8 mm	10.1 mm	Black	On-On	4 A 6 A	125 V	Epoxy Sealed Terminals	CSA UL	-30 ░C	85 °C	25000 Steps	Flange Panel Mount	30 V
NKK Switches M2012TNG01	Actuator Arm Cap Required	Varies by Cap	SPDT	Solder Lug				On-On	0.4 VA	28 V	Epoxy Sealed Terminals	CSA UL	-30 ░C	85 °C	50000 Cycles	Flange Panel Mount	28 V
NKK Switches M2012TNW01/UC	Actuator Arm Cap Required	Varies by Cap	SPDT	Solder Lug				On-On	6 A	125 V	Epoxy Sealed Terminals	CSA UL	-30 ░C	85 °C	25000 Steps	Flange Panel Mount
NKK Switches M2012TNW03-FB	Concave (Standard V)	No Marking	SPDT	PC Pin	12.7 mm	12.4 mm	White	On-On	4 A 6 A	125 V	Epoxy Sealed Terminals	CSA UL	-30 ░C	85 °C	25000 Steps	Flange Panel Mount	30 V
