112950RP

Active

Amphenol RF

CONN RP-BNC PLUG STR CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN RP-BNC PLUG STR CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	112950RP

Body Finish	Nickel
Body Material	Brass
Cable Group	AT&T 735A
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	RP-BNC
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver

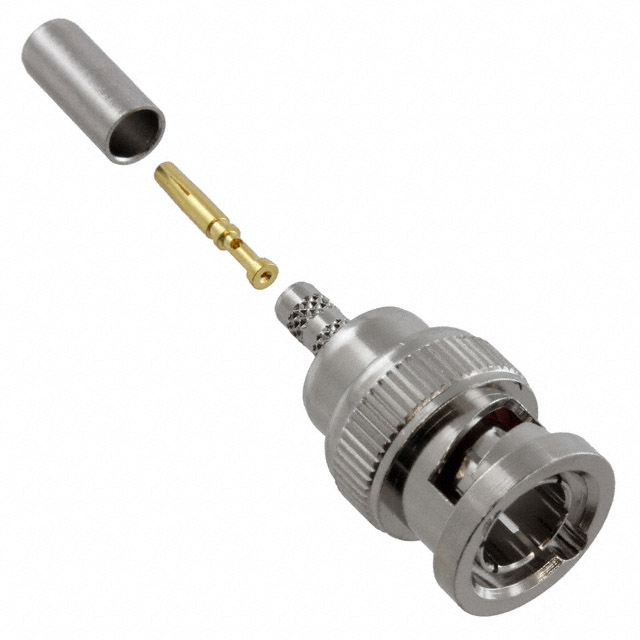

Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Fastening Type	Center Contact Material	Insertion Loss	Voltage Rating	Housing Color	Connector Style	Contact Termination	Mating Cycles	Mounting Type	Includes	Center Contact Plating	Cable Group	Frequency - Max [Max]	Connector Type	Dielectric Material	Number of Ports	Shield Termination	Body Finish
Amphenol RF 112950RP	-65 ░C	165 °C	Brass	Bayonet Lock	Phosphor Bronze	0.2 dB	500 V	Silver	RP-BNC	Crimp	500	Free Hanging (In-Line)	1 Connector 1 Contact 1 Ferrule	Gold	AT&T 735A	4 GHz	Female Socket Plug	Polytetrafluoroethylene (PTFE)	1	Crimp	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RP-BNC Connector Plug, Female Socket Free Hanging (In-Line) Crimp
