11TL1-7

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11TL1-7

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 49.31

Description

General part information

11TL1 Series

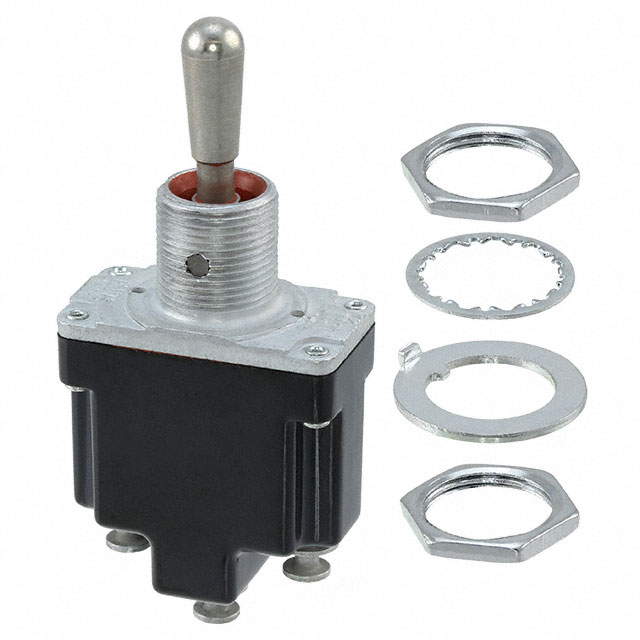

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11TL1-7	11TL1 Series

Actuator Length [x]	17.27 mm	17.27 - 26.67 mm
Actuator Material	Nickel Plated	Nickel Plated
Actuator Type	Standard Round	Standard Round, Locking Lever
Bushing Thread	15/32-32	15/32-32
Circuit	SPDT	SPDT, SPST-NO, SPST, DPDT
Current Rating (Amps)	10 A	10 - 15 A
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	Environment Sealed	Environment Sealed
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm	12.4 mm
Switch Function	Mom-Off-Mom	Mom-Off-Mom, Off-Mom, On-Off, On-Off-Mom, On-On, On-Mom, On-Off-On
Termination Style	Solder Turret	Solder Turret
Voltage Rating - AC	125 V	125 V

11TL1 Series

SWITCH TOGGLE SPDT 10A 125V

Part	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Switch Function	Actuator Material	Actuator Type	Ingress Protection	Bushing Thread	Voltage Rating - AC	Circuit	Current Rating (Amps)	Termination Style
Honeywell Sensing and Productivity Solutions 11TL1-7	Non-Illuminated	71 °C	-65 ░C	12.4 mm	17.27 mm	Mom-Off-Mom	Nickel Plated	Standard Round	Environment Sealed	15/32-32	125 V	SPDT	10 A	Solder Turret
Honeywell Sensing and Productivity Solutions 11TL1-6	Non-Illuminated	71 °C	-65 ░C	12.4 mm	17.27 mm	Off-Mom	Nickel Plated	Standard Round	Environment Sealed	15/32-32	125 V	SPST-NO	10 A	Solder Turret
Honeywell Sensing and Productivity Solutions 11TL1-2D	Non-Illuminated	71 °C	-65 ░C	12.4 mm	26.67 mm	On-Off	Nickel Plated	Locking Lever	Environment Sealed	15/32-32	125 V	SPST	15 A	Solder Turret
Honeywell Sensing and Productivity Solutions 11TL1-5	Non-Illuminated	71 °C	-65 ░C	12.4 mm	17.27 mm	On-Off-Mom	Nickel Plated	Standard Round	Environment Sealed	15/32-32	125 V	SPDT	10 A	Solder Turret
Honeywell Sensing and Productivity Solutions 11TL1-3	Non-Illuminated	71 °C	-65 ░C	12.4 mm	17.27 mm	On-On	Nickel Plated	Standard Round	Environment Sealed	15/32-32	125 V	SPDT	15 A	Solder Turret
Honeywell Sensing and Productivity Solutions 11TL1-8	Non-Illuminated	71 °C	-65 ░C	12.4 mm	17.27 mm	On-Mom	Nickel Plated	Standard Round	Environment Sealed	15/32-32	125 V	SPDT	10 A	Solder Turret
Honeywell Sensing and Productivity Solutions 11TL1-3D	Non-Illuminated	71 °C	-65 ░C	12.4 mm	26.67 mm	On-On	Nickel Plated	Locking Lever	Environment Sealed	15/32-32	125 V	SPDT	15 A	Solder Turret
Honeywell Sensing and Productivity Solutions 11TL1-1A	Non-Illuminated	71 °C	-65 ░C	12.4 mm	26.67 mm	On-Off-On	Nickel Plated	Locking Lever	Environment Sealed	15/32-32	125 V	DPDT	15 A	Solder Turret
