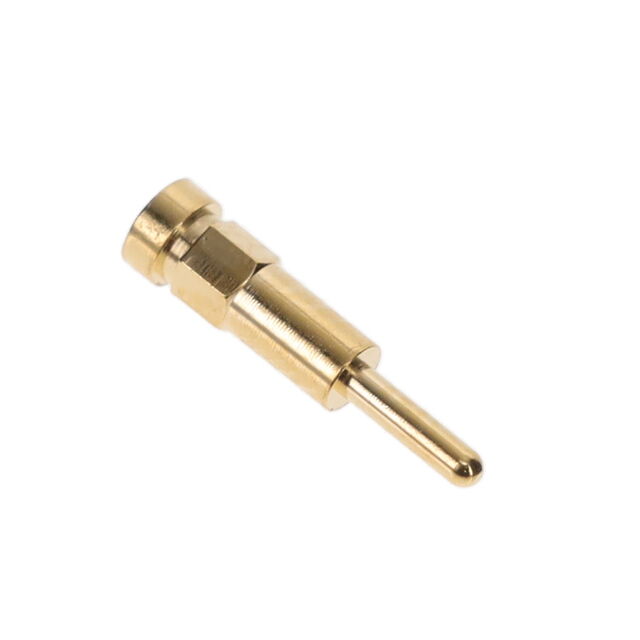

8815-0-00-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .030DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
8815-0-00-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .030DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8815-0-00-21-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.91 mm |
| Flange Diameter [diameter] | 0.075 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.28 in |
| Length - Above Flange [x] | 7.11 mm |
| Length - Overall | 0.31 in |
| Length - Overall | 7.87 mm |
| Mounting Hole Diameter [diameter] | 0.066 in |
| Mounting Hole Diameter [diameter] | 1.68 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.76 mm |
| Pin Size - Above Flange [diameter] | 0.03 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit, Hex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.78 | |
| 10 | $ 0.66 | |||
| 25 | $ 0.63 | |||
| 50 | $ 0.62 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.54 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.47 | |||
Description
General part information
8815-0 Series
PC Pin Terminal Connector Through Hole Gold 0.030" (0.76mm) Dia
Documents
Technical documentation and resources
No documents available
