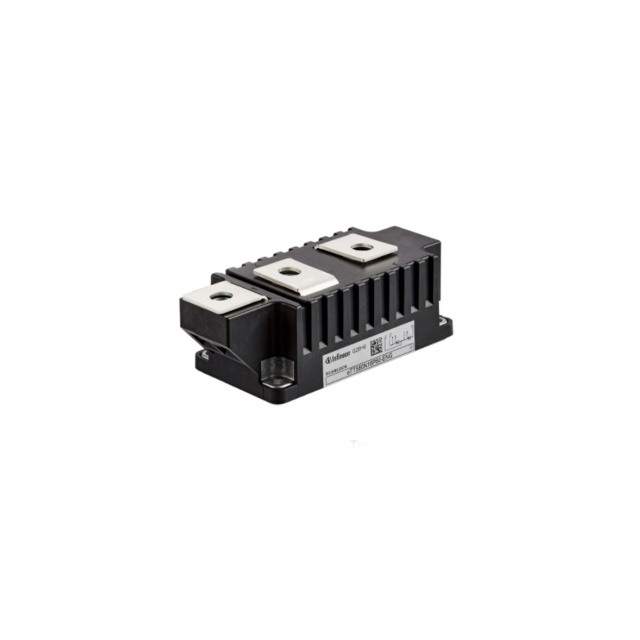

ETT420N22P60HPSA1

Obsolete

Infineon Technologies

THYR / DIODE MODULE DK

Search across all available documentation for this part.

Obsolete

Infineon Technologies

THYR / DIODE MODULE DK

Technical Specifications

Parameters and characteristics for this part

Specification	ETT420N22P60HPSA1

Current - Gate Trigger (Igt) (Max) [Max]	250 mA
Current - Hold (Ih) (Max) [Max]	300 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	13400 A
Current - On State (It (AV)) (Max) [Max]	427 A
Current - On State (It (RMS)) (Max)	700 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max) [Max]	2.2 V
Voltage - Off State	2.2 kV

Part	Number of SCRs, Diodes	Structure	Mounting Type	Current - On State (It (AV)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - On State (It (RMS)) (Max)	Voltage - Off State	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Infineon Technologies ETT420N22P60HPSA1	2 SCRs	Series Connection - All SCRs	Chassis Mount	427 A	13400 A	2.2 V	300 mA	700 A	2.2 kV	Module	250 mA	135 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR Module 2.2 kV 700 A Series Connection - All SCRs Chassis Mount Module
