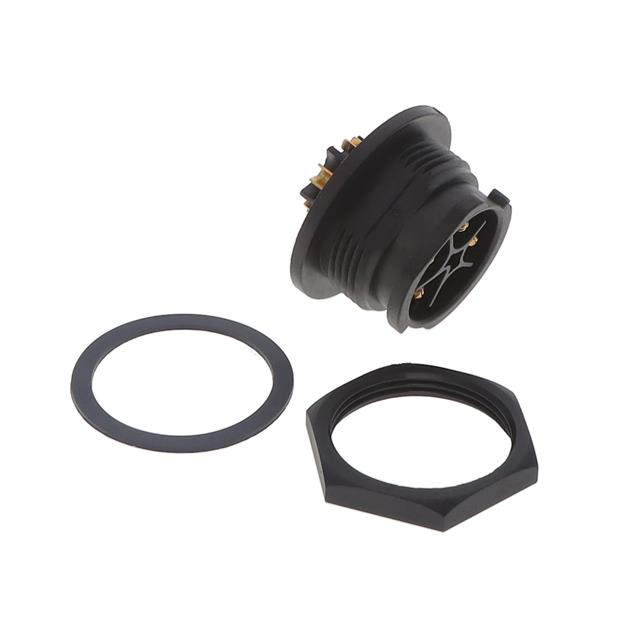

DC-04PMMS-QC800P
ActiveAmphenol LTW
XLOK, D-20A, 04P, FRONT FASTENED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DC-04PMMS-QC800P |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Current Rating (Amps) | 20 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | D |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.27 | |
| 10 | $ 7.47 | |||
| 100 | $ 6.54 | |||
| 1000 | $ 4.82 | |||
Description
General part information
DC-04PMMS Series
4 Position Circular Connector Receptacle, Male Pins Solder
