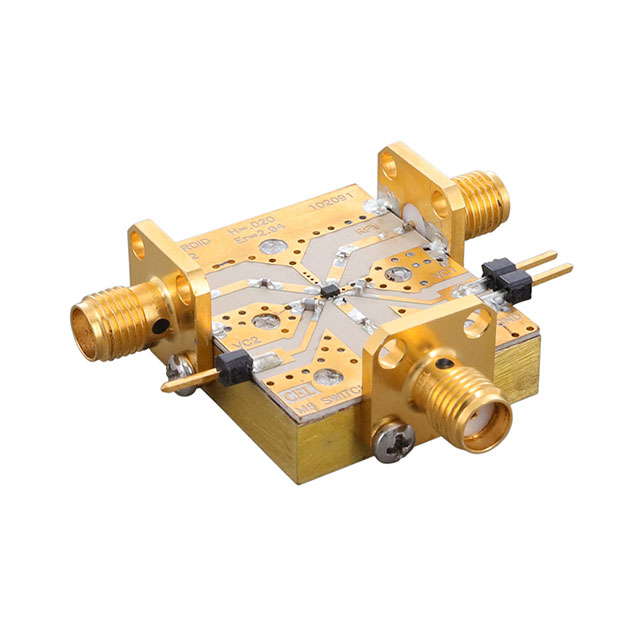

CG2415M6-EVAL

Active

CEL

EVAL BOARD FOR CG2415M6

Search across all available documentation for this part.

Active

CEL

EVAL BOARD FOR CG2415M6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CG2415M6 - Switch, SPDT 500MHz ~ 6GHz Evaluation Board

Technical documentation and resources

Specification	CG2415M6-EVAL	CG2415 Series

Circuit	-	SPDT
For Use With/Related Products	CG2415M6	CG2415M6
Frequency [Max]	6 GHz	6 GHz
Frequency [Min]	500 MHz	500 MHz
Frequency Range	-	6 GHz
Frequency Range	-	500 MHz
IIP3	-	60 dBm
Impedance	-	50 Ohms
Insertion Loss	-	0.45 dB
Isolation	-	26 dB
Package / Case	-	6-SMD, Flat Leads
RF Type	-	802.11a/b/g/n/ac
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	6-Minimold
Test Frequency	-	6 GHz
Type	Switch, SPDT	Switch, SPDT
Voltage - Supply	-	3 V

Part	Type	Supplied Contents	Frequency [Max]	Frequency [Min]	For Use With/Related Products	Test Frequency	RF Type	Insertion Loss	Isolation	IIP3	Circuit	Package / Case	Impedance	Voltage - Supply	Supplier Device Package	Frequency Range [Max]	Frequency Range [Min]
CEL CG2415M6-EVAL	Switch, SPDT	Board(s)	6 GHz	500 MHz	CG2415M6
CEL CG2415M6-C2						6 GHz	802.11a/b/g/n/ac	0.45 dB	26 dB	60 dBm	SPDT	6-SMD, Flat Leads	50 Ohms	3 V	6-Minimold	6 GHz	500 MHz
