1609016-7

Obsolete

TE Connectivity Corcom Filters

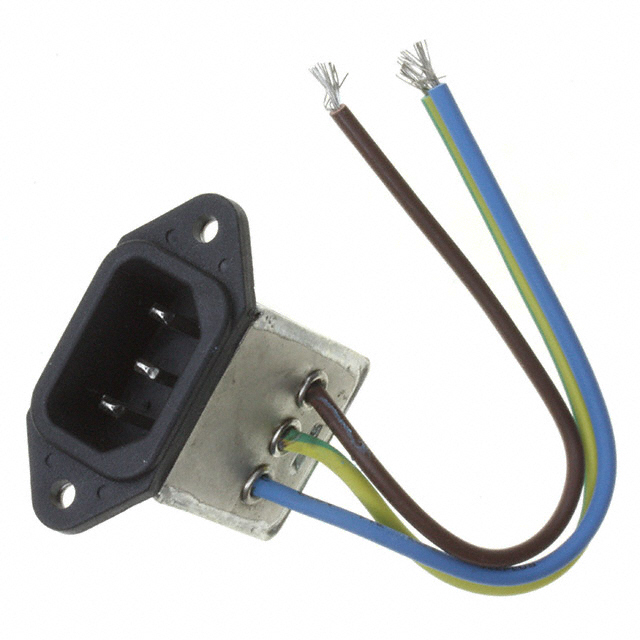

PWR ENT RCPT IEC320-C14 PNL WIRE

Search across all available documentation for this part.

Obsolete

TE Connectivity Corcom Filters

PWR ENT RCPT IEC320-C14 PNL WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	1609016-7

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	3 A
Current Rating - Filter	3 A
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Right Angle, Flange
Panel Cutout Dimensions [x]	30.48 mm
Panel Cutout Dimensions [y]	22.86 mm
Termination	Wire Leads
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC

PWR ENT RCPT IEC320-C14 PNL WIRE

Part	Mounting Type	Accomodates a Fuse	Connector Style	Approval Agency	Termination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Filter	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Connector Type	Filter Type
TE Connectivity Corcom Filters 1609016-7	Flange, Panel Mount, Right Angle		IEC 320-C14	CSA, UL, VDE	Wire Leads	22.86 mm	30.48 mm	3 A	3 A	250 VAC	120 VAC	Male Blades, Receptacle	Filtered (EMI, RFI) - Commercial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange, Right Angle
