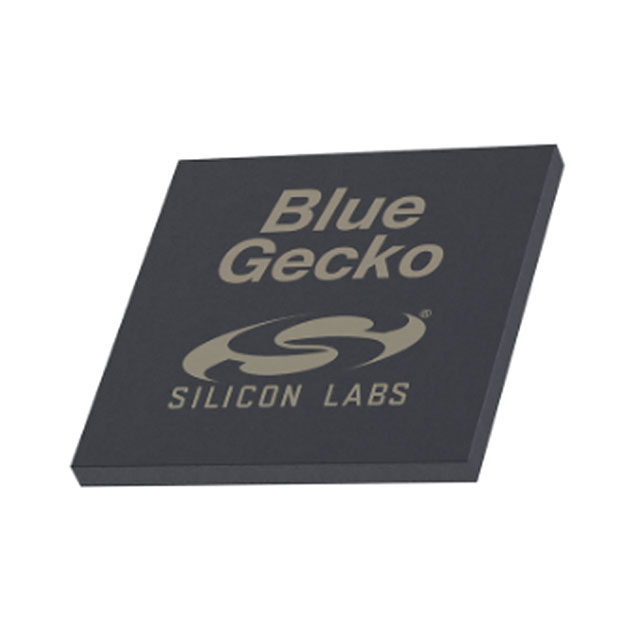

BGM121A256V2

Active

Silicon Labs

RF TXRX MOD BLUETOOTH CHIP SMD

Search across all available documentation for this part.

Active

Silicon Labs

RF TXRX MOD BLUETOOTH CHIP SMD

Technical Specifications

Parameters and characteristics for this part

RF TXRX MOD BLUETOOTH CHIP SMD

Part	Power - Output	Voltage - Supply [Min]	Voltage - Supply [Max]	RF Family/Standard	Sensitivity	Serial Interfaces	Package / Case	Memory Size	Frequency	Utilized IC / Part	Current - Transmitting	Mounting Type	Modulation	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Current - Receiving	Data Rate
Silicon Labs BGM121A256V2	8 dBm	1.85 V	3.8 V	Bluetooth	-90 dBm	I2C, I2S, SPI, UART	56-SMD Module	32 kB, 256 kB	2.4 GHz	EFR32BG	8.2 mA	Surface Mount	GFSK	Bluetooth v4.2	85 °C	-40 °C	Integrated, Chip	9 mA	1 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
