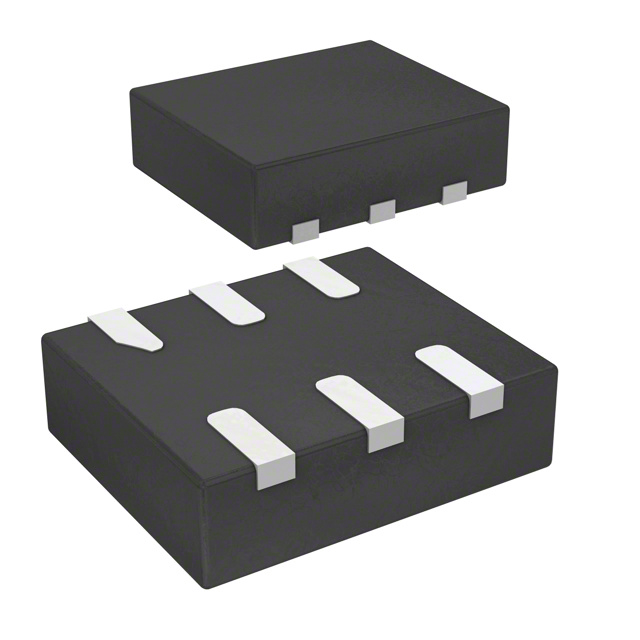

uClamp3603T.TCT

Active

Semtech Corporation

ESD SUPPRESSOR TVS ±20KV 6-PIN SLP T/R

Search across all available documentation for this part.

Active

Semtech Corporation

ESD SUPPRESSOR TVS ±20KV 6-PIN SLP T/R

Technical Specifications

Parameters and characteristics for this part

Specification	uClamp3603T.TCT

Capacitance @ Frequency	25 pF
Current - Peak Pulse (10/1000µs)	1.2/50µs
Current - Peak Pulse (10/1000µs)	2 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	6-XDFN
Power - Peak Pulse	140 W
Power Line Protection	False
Qualification	AEC-Q100
Supplier Device Package	SLP1710N6T
Type	Zener
Unidirectional Channels [custom]	3
Voltage - Breakdown (Min) [Min]	37 V
Voltage - Clamping (Max) @ Ipp [Max]	65 V
Voltage - Reverse Standoff (Typ)	36 V

Part	Capacitance @ Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs)	Power - Peak Pulse	Package / Case	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Qualification	Power Line Protection	Type	Unidirectional Channels [custom]	Supplier Device Package	Grade
Semtech Corporation uClamp3603T.TCT	25 pF	-40 °C	125 ¯C	37 V	1.2/50µs	2 A	140 W	6-XDFN	Surface Mount	65 V	36 V	AEC-Q100		Zener	3	SLP1710N6T	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Transient protection for proximity sensors.IEC 61000-4-2 (ESD) 000-4-2 (ESD)IEC 61000-4-4 (EFT) 000-4-4 (EFT)

IEC 61000-4-2 (ESD) 000-4-2 (ESD)

IEC 61000-4-4 (EFT) 000-4-4 (EFT)
