925076-3

Active

TE Connectivity AMP Connectors

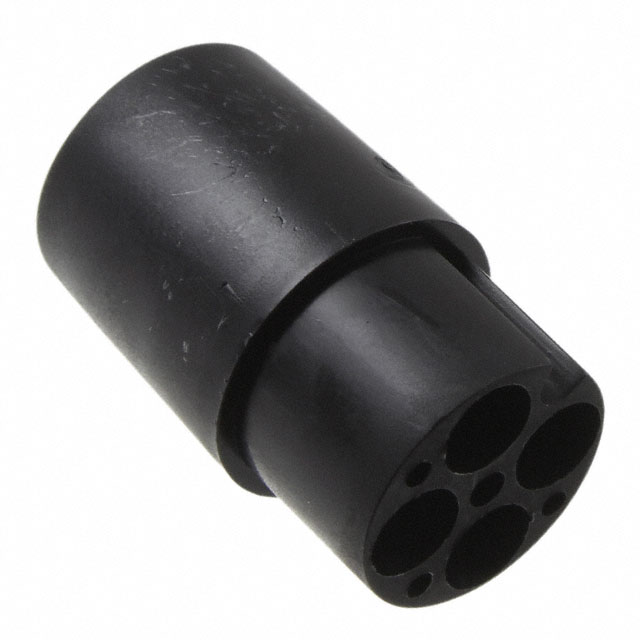

CONN PLUG HSNG FMALE 4POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSNG FMALE 4POS INLINE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	925076-3	925076 Series

Connector Type	Plug Housing	Plug Housing
Contact Shape	Circular	Circular
Contact Type	Crimp	Crimp
Fastening Type	Push-Pull	Push-Pull
Housing Color	Black	Black, Natural
Material Flammability Rating	UL94 V-2	UL94 V-2, UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	4
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Polyamide (PA6), Nylon 6
Shielding	Unshielded	Unshielded
Type	For Female Sockets	For Female Sockets

CONN PLUG HSNG FMALE 4POS INLINE

Part	Shielding	Housing Color	Contact Shape	Connector Type	Number of Positions	Orientation	Note	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Type	Material Flammability Rating	Shell Material	Contact Type
TE Connectivity AMP Connectors 925076-3	Unshielded	Black	Circular	Plug Housing	4	Keyed	Contacts Not Included	Free Hanging (In-Line)	105 ░C	-55 °C	Push-Pull	For Female Sockets	UL94 V-2	Polyamide (PA66), Nylon 6/6	Crimp
TE Connectivity AMP Connectors 925076-7	Unshielded	Natural	Circular	Plug Housing	4	Keyed	Contacts Not Included	Free Hanging (In-Line)	105 ░C	-55 °C	Push-Pull	For Female Sockets	UL94 V-0	Polyamide (PA66), Nylon 6/6	Crimp
TE Connectivity AMP Connectors 925076-6	Unshielded	Natural	Circular	Plug Housing	4	Keyed	Contacts Not Included	Free Hanging (In-Line)	105 ░C	-55 °C	Push-Pull	For Female Sockets	UL94 V-2	Nylon 6, Polyamide (PA6)	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug Housing Free Hanging (In-Line)
