1301.9316.24

Active

SCHURTER Inc.

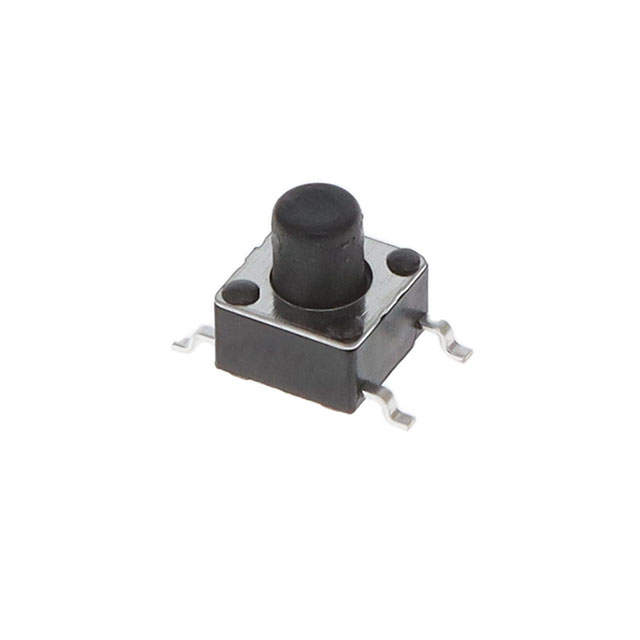

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	1301.9316.24

Actuator Height off PCB, Vertical [z]	7 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Ingress Protection	IP40
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Switch Function	Actuator Type	Actuator Height off PCB, Vertical [z]	Mounting Type	Mechanical Life	Outline [y]	Outline [x]	Contact Rating @ Voltage	Illumination	Switch Travel	Actuator Orientation	Ingress Protection	Features	Termination Style
SCHURTER Inc. 1301.9316.24	-20 C	70 °C	SPST-NO	Off-Mom	Standard	7 mm	Surface Mount	100000 Cycles	6 mm	6 mm	0.05 A, 12 VDC	Non-Illuminated	0.25 mm	Top Actuated	IP40	Tactile Feedback	Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.37
	Digi-Reel®	1	$ 0.37
	Tape & Reel (TR)	750	$ 0.37

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
