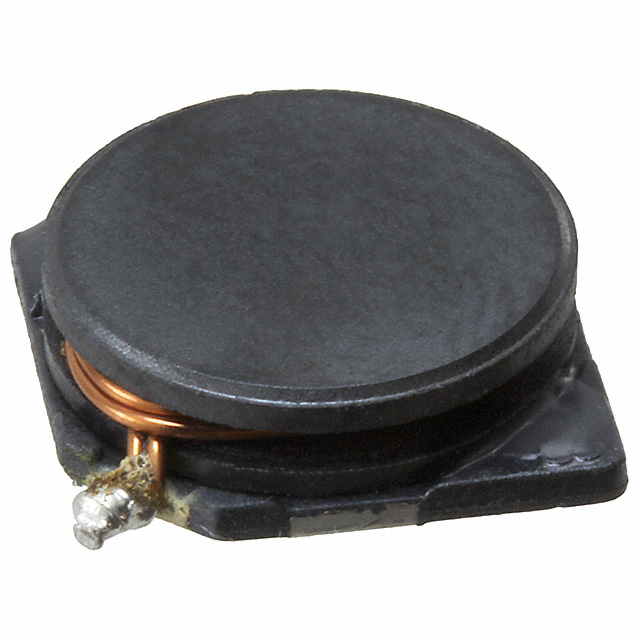

SDR1030-221K

Active

Bourns Inc.

IND10X10X3MM,220UH10%0.46A,NON-SHDSMD /TAPE & REEL - 13" REEL

Search across all available documentation for this part.

Active

Bourns Inc.

IND10X10X3MM,220UH10%0.46A,NON-SHDSMD /TAPE & REEL - 13" REEL

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Q @ Freq	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Type	Inductance Frequency - Test	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Frequency - Self Resonant	Inductance	Shielding	Current - Saturation (Isat)	DC Resistance (DCR)
Bourns Inc. SDR1030-221K	Surface Mount	Nonstandard	125 °C	-40 °C	10 %	23 796 kHz	10 mm	0.394 in	10 mm	0.394 "	1.15 Ohm	Drum Core Wirewound	100 kHz	Ferrite	0.13 "	3.3 mm	460 mA	6.2 MHz	220 µH	Unshielded	480 mA
Bourns Inc. SDR1030-6R8M	Surface Mount	Nonstandard	125 °C	-40 °C	20 %	7.96 MHz 15	10 mm	0.394 in	10 mm	0.394 "		Drum Core Wirewound	100 kHz	Ferrite	0.13 "	3.3 mm	2.2 A	38.1 MHz	6.8 µH	Unshielded	2.8 A
Bourns Inc. SDR1030-100M	Surface Mount	Nonstandard	125 °C	-40 °C	20 %	2.52 MHz 15	10 mm	0.394 in	10 mm	0.394 "		Drum Core Wirewound	100 kHz	Ferrite	0.13 "	3.3 mm	2 A	33.1 MHz	10 µH	Unshielded	2.4 A	64 mOhm
Bourns Inc. SDR1030-102K	Surface Mount	Nonstandard	125 °C	-40 °C	10 %	42 252 kHz	10 mm	0.394 in	10 mm	0.394 "	4.7 Ohm	Drum Core Wirewound	100 kHz	Ferrite	0.13 "	3.3 mm	0.2 A	2.5 MHz	1 mH	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 µH Unshielded Drum Core, Wirewound Inductor 460 mA 1.15Ohm Max Nonstandard
