R55FVQ

Active

BANNER ENGINEERING

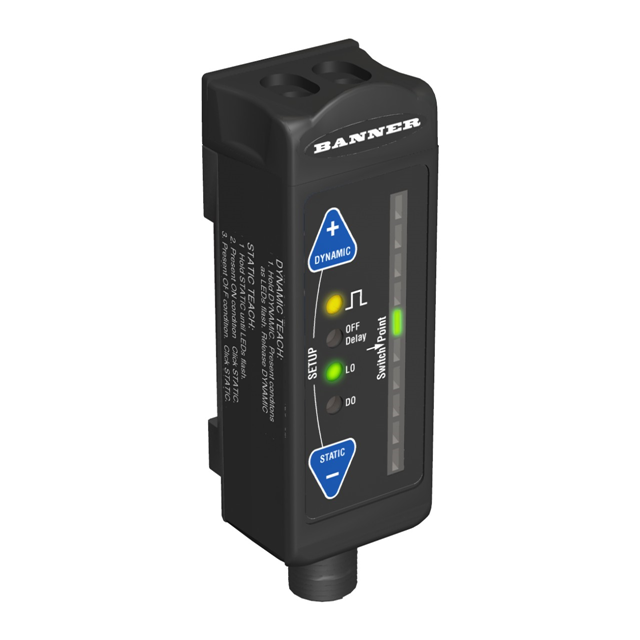

R55 COLOR MARK: GLASS FIBER W/ RED LED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

R55 COLOR MARK: GLASS FIBER W/ RED LED

Technical Specifications

Parameters and characteristics for this part

Specification	R55FVQ

Adjustment Type	Adjustable
Connection Method	Connector
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Red LED
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN/PNP
Response Time	100 ms
Sensing Distance	110 mm
Sensing Distance	4.331 in
Sensing Method	Fiber Optic
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Light Source	Output Configuration	Sensing Method	Adjustment Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Ingress Protection	Response Time	Sensing Distance	Sensing Distance	Voltage - Supply [Max]	Voltage - Supply [Min]	Connection Method	Cable Length	Cable Length
BANNER ENGINEERING R55FVQ	Red LED	NPN/PNP	Fiber Optic	Adjustable	55 °C	-10 °C	NEMA 6P IEC IP67	100 ms	110 mm	4.331 in	30 VDC	10 VDC	Connector
BANNER ENGINEERING R55FVW	Blue LED	NPN/PNP	Fiber Optic	Adjustable	55 °C	-10 °C	NEMA 6P IEC IP67	500 µs			30 VDC	10 VDC	Cable	78.74 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 256.00
Newark	Each	1	$ 262.00

General part information

Fiber Optic Optical Sensor 4.331" (110mm) NPN/PNP
