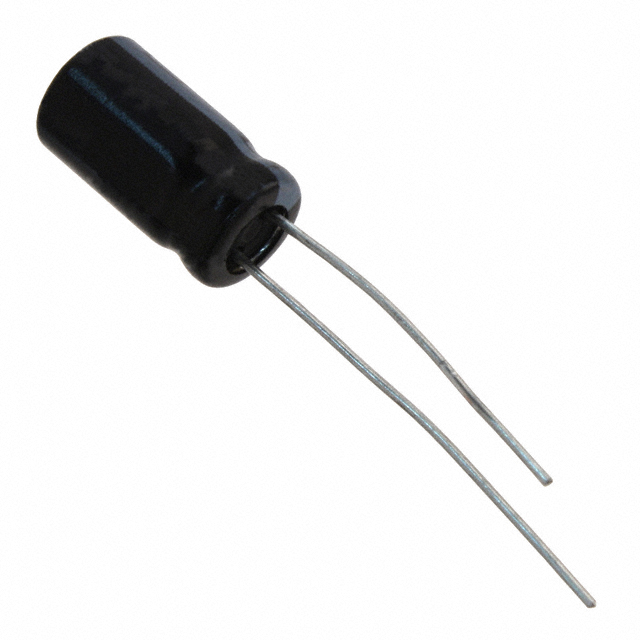

ESH227M010AE3AA

Active

KEMET

CAP ALUM 220UF 20% 10V RADIAL TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 220UF 20% 10V RADIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	ESH227M010AE3AA

Applications	General Purpose
Capacitance	220 µF
Height - Seated (Max) [Max]	0.492 in
Height - Seated (Max) [Max]	12.5 mm
Lead Spacing	0.098 in
Lead Spacing	2.5 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ Low Frequency	180 mA
Size / Dimension [diameter]	6 mm
Size / Dimension [diameter]	0.236 in
Tolerance	20 %
Voltage - Rated	10 V

Part	Capacitance	Applications	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Voltage - Rated	Package / Case	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ High Frequency	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET ESH227M010AE3AA	220 µF	General Purpose	Through Hole	6 mm	0.236 in	20 %	-40 °C	105 ░C	Polar	10 V	Radial Can	0.098 in	2.5 mm	180 mA	2000 Hrs	0.492 in	12.5 mm
KEMET ESH227M025AG3AA	220 µF	General Purpose	Through Hole	8 mm	0.315 "	20 %	-40 °C	105 ░C	Polar	25 VDC	Radial Can	0.138 in	3.5 mm	240 mA	2000 Hrs	0.492 in	12.5 mm	360 mA
KEMET ESH227M035AH9AA	220 µF	General Purpose	Through Hole	10 mm	0.394 in	20 %	-40 °C	105 ░C	Polar	35 V	Radial Can	0.197 in	5 mm	315 mA	2000 Hrs	0.551 "		472.5 mA	14 mm
KEMET ESH227M063AH4AA	220 µF	General Purpose	Through Hole	10 mm	0.394 in	20 %	-40 °C	105 ░C	Polar	63 V	Radial Can	0.197 in	5 mm	465 mA	2000 Hrs			697.5 mA		22 mm	0.866 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
