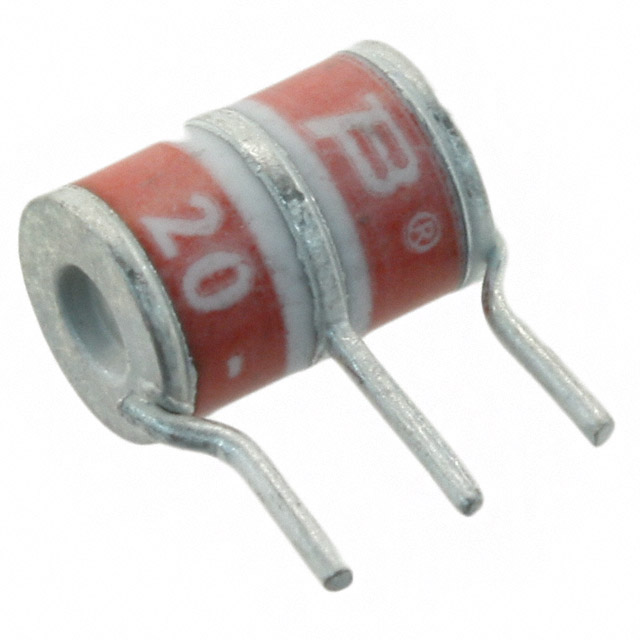

2020-23T-A1LF

Active

Bourns Inc.

GAS DISCHARGE TUBE (GDT), FAST ACTING, 2020 T SERIES, 180 V, RADIAL LEADED, 5 KA, 650 V

Search across all available documentation for this part.

Active

Bourns Inc.

GAS DISCHARGE TUBE (GDT), FAST ACTING, 2020 T SERIES, 180 V, RADIAL LEADED, 5 KA, 650 V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2020-23T-A1LF	2020 Series

Fail Short	False	True, False
Impulse Discharge Current (8/20µs)	10000 A	10000 A
Impulse Discharge Current (8/20µs)	10 kA	10 kA
Mounting Type	User Defined	Through Hole, User Defined
Number of Poles	3	3
Package / Case	Cylinder No Lead, 3 Terminal	Axial Cylinder, 3 Lead (Radial Bend), Cylinder No Lead, 3 Terminal
Voltage - DC Spark Over (Nom)	180 V	60 - 180 V

GDT 360V 10KA 3 POLE TH

Part	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Mounting Type	Number of Poles	Package / Case	Voltage - DC Spark Over (Nom)
Bourns Inc. 2020-42T-C4FLF	10000 A	10 kA	Through Hole	3
Bourns Inc. 2020-42T-C2LF	10000 A	10 kA	Through Hole	3	Axial Cylinder, 3 Lead (Radial Bend)
Bourns Inc. 2020-23T-A1LF	10000 A	10 kA	User Defined	3	Cylinder No Lead, 3 Terminal	180 V
Bourns Inc. 2020-42T-A1LF	10000 A	10 kA	User Defined	3	Cylinder No Lead, 3 Terminal
Bourns Inc. 2020-23T-C2FLF	10000 A	10 kA	Through Hole	3	Axial Cylinder, 3 Lead (Radial Bend)	180 V
Bourns Inc. 2020-15T-C4FLF	10000 A	10 kA	Through Hole	3		60 V
Bourns Inc. 2020-23T-C2LF	10000 A	10 kA	Through Hole	3	Axial Cylinder, 3 Lead (Radial Bend)	180 V
Bourns Inc. 2020-42T-C2FLF	10000 A	10 kA	Through Hole	3	Axial Cylinder, 3 Lead (Radial Bend)
Bourns Inc. 2020-15T-C4LF	10000 A	10 kA	Through Hole	3		60 V
Bourns Inc. 2020-15T-C2LF	10000 A	10 kA	Through Hole	3	Axial Cylinder, 3 Lead (Radial Bend)	60 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 1.88
Newark	Each	1	$ 2.30

General part information

Gas Discharge Tube 180 V 10000A (10kA) 3 Pole User Defined
