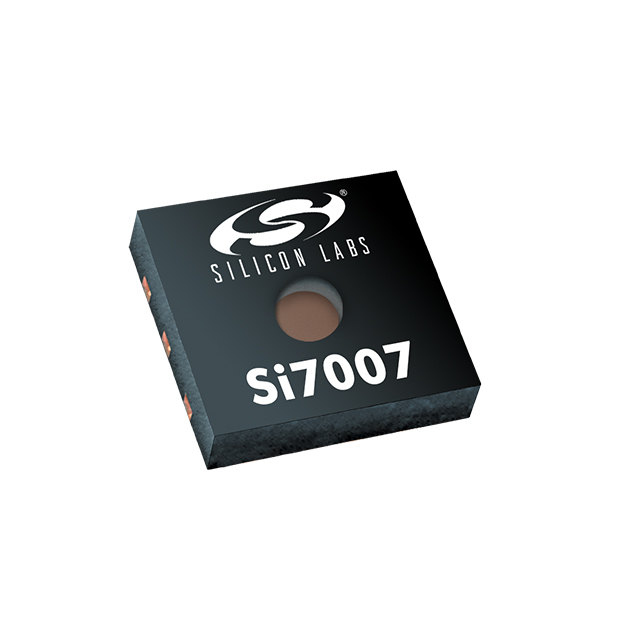

SI7007-A20-IM
ObsoleteSilicon Labs
SENS HUMI/TEMP 3.6V PWM 3% 6DFN
Deep-Dive with AI
Search across all available documentation for this part.
SI7007-A20-IM
ObsoleteSilicon Labs
SENS HUMI/TEMP 3.6V PWM 3% 6DFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SI7007-A20-IM |
|---|---|
| Accuracy | 5 % RH |
| Humidity Range [Max] | 100 % RH |
| Humidity Range [Min] | 0 % RH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output | 11b |
| Response Time | 6 s |
| Sensor Type | Temperature, Humidity |
| Supplier Device Package | 6-DFN (3x3) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SI7007 Series
Humidity, Temperature 0 ~ 100% RH PWM ±5% RH 6 s Surface Mount
Documents
Technical documentation and resources
No documents available
