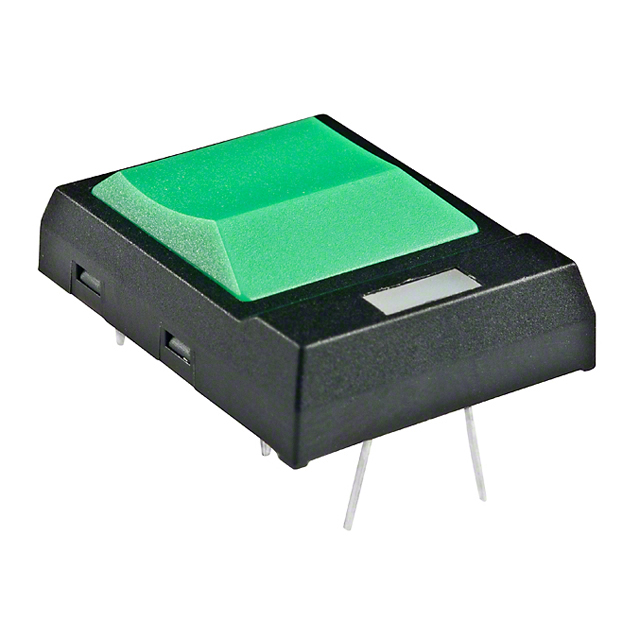

JF15RP3FC

Active

NKK Switches

ILLUMINATED ULTRA-THIN PROCESS SEALED TACTILE

Search across all available documentation for this part.

Active

NKK Switches

ILLUMINATED ULTRA-THIN PROCESS SEALED TACTILE

Technical Specifications

Parameters and characteristics for this part

Specification	JF15RP3FC

Actuator Height off PCB, Vertical	6.78 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Process Sealed
Illumination	Illuminated
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2 VDC
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Force	200 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	22.8 mm
Outline [y]	17.7 mm
Switch Function	Off-Mom
Switch Travel	0.8 mm
Termination Style	PC Pin

Part	Illumination	Features	Switch Function	Actuator Type	Switch Travel	Actuator Material	Mounting Type	Termination Style	Actuator Orientation	Operating Force	Contact Rating @ Voltage	Illumination Type, Color	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical	Circuit	Outline [y]	Outline [x]	Mechanical Life
NKK Switches JF15RP3FC	Illuminated	Process Sealed	Off-Mom	Square Button	0.8 mm	Nylon Polyamide (PA)	Through Hole	PC Pin	Top Actuated	200 gf	0.05 A 24 VDC	LED Red	2 VDC	70 °C	-25 °C	6.78 mm	SPST-NO	17.7 mm	22.8 mm	500000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
