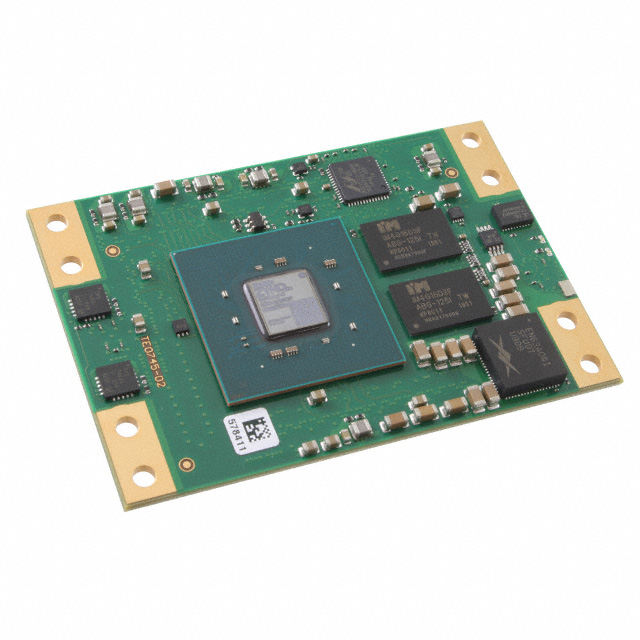

TE0745-02-71I11-A

Obsolete

Trenz Electronic

SOM DDR3 1GB ZYNQ

Search across all available documentation for this part.

Obsolete

Trenz Electronic

SOM DDR3 1GB ZYNQ

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TE0745 Embedded Module ARM® Cortex®-A9 Zynq-7000 (Z-7030) 1GB 64MB

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TE0745-02-71I11-A	TE0745 Series

	-	-
Co-Processor	Z-7030	Z-7030
Co-Processor	Zynq-7000	Zynq-7000, Zynq-7000 (Z-7035)
Connector Type	Samtec ST5	Samtec ST5
Contents	-	Board(s)
Core Processor	ARM® Cortex®-A9	Xilinx Zynq XC7Z030-2FBG676I, ARM® Cortex®-A9, Xilinx Zynq XC7Z045-1FBG676C
Flash Size	64 MB	32 - 64 MB
For Use With/Related Products	-	TE0745
Module/Board Type	FPGA, MCU	MPU Core, FPGA, MCU
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Platform	-	TE0745 Zynq-7000 AP SoC Carrier
RAM Size	1 GB	1 GB
Size / Dimension [x]	52 mm	52 mm
Size / Dimension [x]	2.05 "	2.05 "
Size / Dimension [y]	2.99 in	2.99 in
Size / Dimension [y]	76 mm	76 mm
Suggested Programming Environment	-	Vivado
Utilized IC / Part	-	TE0745

SOM 1GB DDR3 XC7Z030-2FBG676I

Part	RAM Size	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Connector Type	Flash Size	Core Processor	Operating Temperature [Max]	Operating Temperature [Min]	Module/Board Type	Co-Processor	Co-Processor	For Use With/Related Products	Contents	Platform	Utilized IC / Part	Suggested Programming Environment
Trenz Electronic TE0745-02-72I11-A	1 GB	2.99 in	76 mm	52 mm	2.05 "	Samtec ST5	64 MB	Xilinx Zynq XC7Z030-2FBG676I	85 °C	-40 °C	MPU Core
Trenz Electronic TE0745-02-92I11-A
Trenz Electronic TE0745-02-71I11-A	1 GB	2.99 in	76 mm	52 mm	2.05 "	Samtec ST5	64 MB	ARM® Cortex®-A9	85 °C	-40 °C	FPGA, MCU	Z-7030	Zynq-7000
Trenz Electronic TEB0745-02														TE0745	Board(s)	TE0745 Zynq-7000 AP SoC Carrier	TE0745	Vivado
Trenz Electronic TE0745-02-81C11-A	1 GB	2.99 in	76 mm	52 mm	2.05 "	Samtec ST5	32 MB	ARM® Cortex®-A9	85 °C	-40 °C	FPGA, MCU		Zynq-7000 (Z-7035)
Trenz Electronic TE0745-02-91C11-A	1 GB	2.99 in	76 mm	52 mm	2.05 "	Samtec ST5	64 MB	Xilinx Zynq XC7Z045-1FBG676C	70 °C	0 °C	MPU Core
