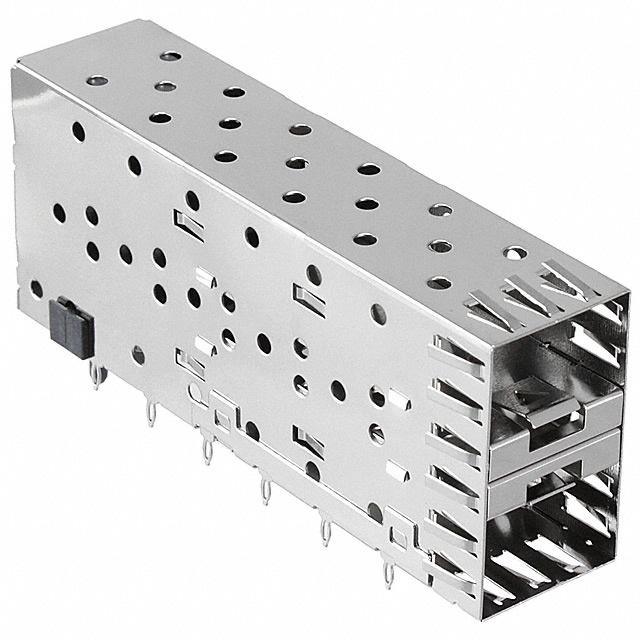

UE78-B1126-00321

Active

Amphenol ICC (Commercial Products)

CONN SFP RCPT W/CAGE 2X1 40P R/A

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN SFP RCPT W/CAGE 2X1 40P R/A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UE78-B1126-00321	UE78 Series

Connector Style	Ganged (2x1), Receptacle with Cage	Receptacle with Cage, Ganged (2x1)
Connector Type	SFP	SFP
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	EMI Shielded, Board Guide	EMI Shielded, Board Guide
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	40	20 - 40
Termination	Press-Fit	Solder, Press-Fit

SFP+ 1X2 CAGE

Part	Number of Positions	Features	Connector Style	Connector Type	Termination	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) UE78-A163H-0033T	20	Board Guide, EMI Shielded	Receptacle with Cage	SFP	Solder	Through Hole, Right Angle	Gold	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) UE78-B1126-00321	40	Board Guide, EMI Shielded	Ganged (2x1), Receptacle with Cage	SFP	Press-Fit	Through Hole, Right Angle	Gold	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 (20 x 2) Position SFP Receptacle with Cage, Ganged (2x1) Connector Press-Fit Through Hole, Right Angle
