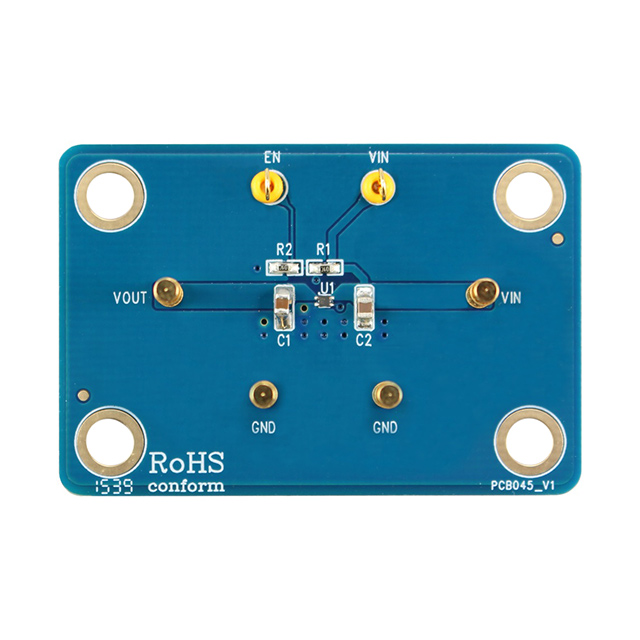

EVB_RT9073A-33GQZ

Active

Richtek USA Inc.

EVAL MODULE FOR RT9073A-33GQZ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet RT9073A

EVB_RT9073A-33GQZ

Active

Richtek USA Inc.

EVAL MODULE FOR RT9073A-33GQZ

Deep-Dive with AI

DocumentsDatasheet RT9073A

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EVB_RT9073A-33GQZ

Board Type	Fully Populated
Channels per IC	1 - Single
Current - Output	250 mA
Regulator Type	Positive Fixed
Supplied Contents	Board(s)
Voltage - Input [Max]	5.5 V
Voltage - Input [Min]	1.2 VDC
Voltage - Output	3.3 V

RT9073 Series

Part	Supplier Device Package	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Regulators	Output Configuration	Current - Quiescent (Iq)	Protection Features	Current - Output	PSRR	Output Type	Control Features	Mounting Type	Package / Case	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed) [Min]	Channels per IC	Board Type	Regulator Type	Supplied Contents	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]
Richtek USA Inc. RT9073A-18GQZ	4-ZQFN (1x1)	0.8 V	1.8 V	85 °C	-40 °C	1	Positive	3 µA	Over Current Over Temperature	250 mA	75 dB	1.81 mOhm	Enable	Surface Mount	4-XDFN Exposed Pad	5.5 V
Richtek USA Inc. RT9073-23GB	SOT-23-5	0.8 V		85 °C	-40 °C	1	Positive	3 µA	Over Current Over Temperature	250 mA	75 dB	1.81 mOhm	Enable	Surface Mount	SC-74A SOT-753	5.5 V	2.3 V
Richtek USA Inc. RT9073A-28GQZ	4-ZQFN (1x1)	0.6 V	2.8 V	85 °C	-40 °C	1	Positive	3 µA	Over Current Over Temperature	250 mA	75 dB	1.81 mOhm	Enable	Surface Mount	4-XDFN Exposed Pad	5.5 V
Richtek USA Inc. RT9073A-19GQZ	4-ZQFN (1x1)	0.8 V	1.9 V	85 °C	-40 °C	1	Positive	3 µA	Over Current Over Temperature	250 mA		1.81 mOhm	Current Limit Enable	Surface Mount	4-XDFN Exposed Pad	5.5 V
Richtek USA Inc. RT9073N-09GB	SOT-23-5	1.45 V	0.9 V	85 °C	-40 °C	1	Positive	3 µA	Over Current Over Temperature	250 mA	75 dB	1.81 mOhm	Enable	Surface Mount	SC-74A SOT-753	5.5 V
Richtek USA Inc. RT9073N-18GB	SOT-23-5	0.8 V	1.8 V	85 °C	-40 °C	1	Positive	3 µA	Over Current Over Temperature	250 mA	75 dB	1.81 mOhm	Enable	Surface Mount	SC-74A SOT-753	5.5 V
Richtek USA Inc. RT9073-30GU5	SC-70-5	0.6 V		85 °C	-40 °C	1	Positive	3 µA	Over Current Over Temperature	250 mA	75 dB	1.81 mOhm	Enable	Surface Mount	5-TSSOP SC-70-5 SOT-353	5.5 V
Richtek USA Inc. RT9073-25GB	SOT-23-5	0.6 V	2.5 V	85 °C	-40 °C	1	Positive	3 µA	Over Current Over Temperature	250 mA	75 dB	1.81 mOhm	Enable	Surface Mount	SC-74A SOT-753	5.5 V
Richtek USA Inc. EVB_RT9073A-33GQZ										250 mA								1 - Single	Fully Populated	Positive Fixed	Board(s)	3.3 V	5.5 V	1.2 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.19

Description

General part information

RT9073 Series

RT9073A 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board
