704.097.018I

Active

EAO

CONFIG SW BODY SELECTOR ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY SELECTOR ILLUM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	704.097.018I	704.097 Series

(Select First, Then Apply Filters) Compatible Series	04, EAO	04, EAO
Actuator Type	Selector	Selector
Illumination	Illuminated	Illuminated, Non-Illuminated
Panel Cutout Dimensions	30.5 mm	22.3 - 30.5 mm
Requires	Illumination Source, Contact Block(s)	Illumination Source, Contact Block(s)
Type	Momentary, Maintained	Maintained, Momentary

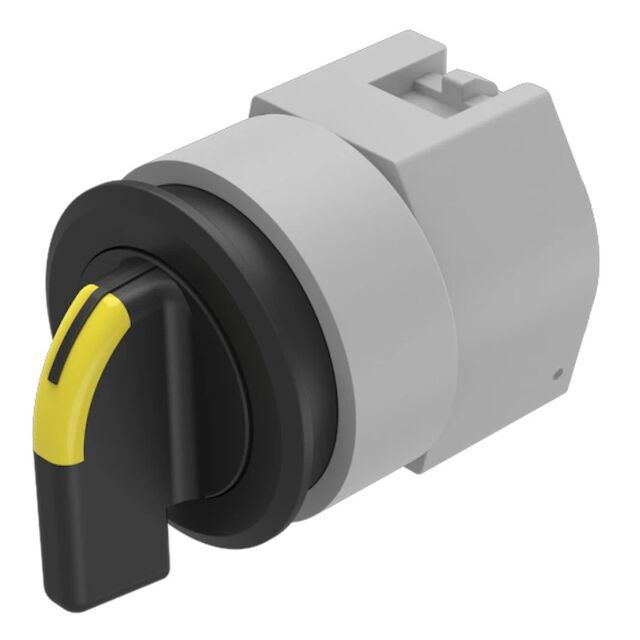

SELECTOR SWITCH-ACTUATOR ILLUMINATED 3 POSITIONS NATURAL RAISED D29 MAIN-0-MOM LONG LEVER ALU

Part	Actuator Type	Type	Illumination	Requires	Panel Cutout Dimensions	(Select First, Then Apply Filters) Compatible Series
EAO 704.097.0I	Selector	Maintained	Illuminated	Contact Block(s), Illumination Source	22.3 mm	04, EAO
EAO 704.097.018	Selector	Maintained, Momentary	Non-Illuminated	Contact Block(s)	30.5 mm	04, EAO
EAO 704.097.018I	Selector	Maintained, Momentary	Illuminated	Contact Block(s), Illumination Source	30.5 mm	04, EAO
EAO 704.097.0	Selector	Maintained, Momentary	Non-Illuminated	Contact Block(s)	22.3 mm	04, EAO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Selector Illuminated
