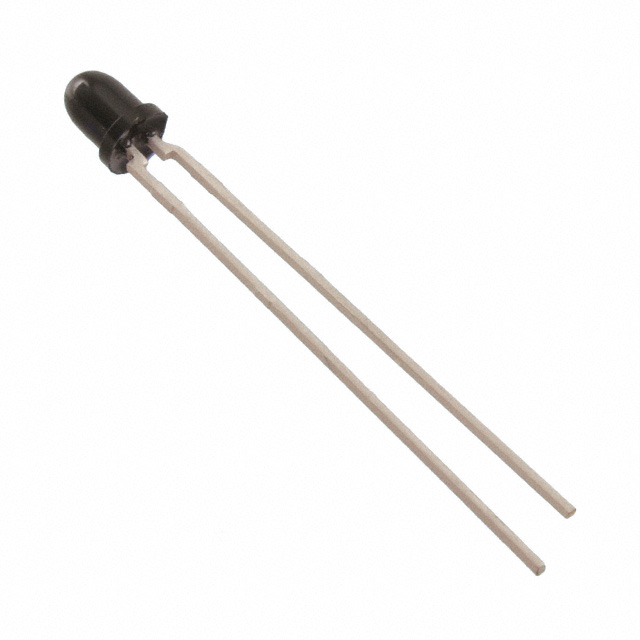

SFH 309 FA-5

Active

ams-OSRAM USA INC.

SENSOR PHOTO 900NM TOP VIEW RAD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

SENSOR PHOTO 900NM TOP VIEW RAD

Technical Specifications

Parameters and characteristics for this part

Specification	SFH 309 FA-5

Current - Collector (Ic) (Max) [Max]	15 mA
Current - Dark (Id) (Max) [Max]	200 nA
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	Radial, T-1 Lens
Power - Max [Max]	165 mW
Viewing Angle	24 °
Voltage - Collector Emitter Breakdown (Max) [Max]	35 V
Wavelength	900 nm

Part	Wavelength	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Orientation	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Package / Case	Viewing Angle	Current - Dark (Id) (Max) [Max]
ams-OSRAM USA INC. SFH 309 FA-5/6	900 nm	15 mA	100 °C	-40 °C	165 mW	Top View	35 V	Through Hole	Radial T-1 Lens	24 °	200 nA
ams-OSRAM USA INC. SFH 309 FA-5	900 nm	15 mA	100 °C	-40 °C	165 mW	Top View	35 V	Through Hole	Radial T-1 Lens	24 °	200 nA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 900nm Top View Radial, T-1 Lens
