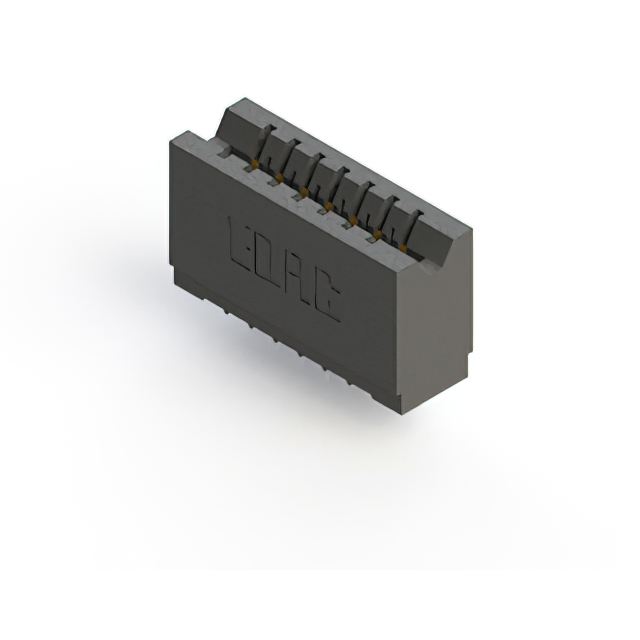

746-007-545-106
ActiveEDAC Inc.
CONN EDGE SGL FMALE 7POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
746-007-545-106
ActiveEDAC Inc.
CONN EDGE SGL FMALE 7POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 746-007-545-106 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 7 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Wire Wrap, Press-Fit |
| Termination Rows | 1 |
746-007 Series
| Part | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Contact Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Termination Rows | Gender | Read Out | Contact Material | Card Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Color | Material - Insulation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | 7 | Cantilever | 7 | -40 °C | 105 ░C | 1 | 1 | Female | Single | Copper Alloy | Non Specified - Single Edge | 0.76 Ám | 30 Áin | Press-Fit | Black | Polyester Thermoplastic | Through Hole |
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | 7 | Cantilever | 7 | -40 °C | 105 ░C | 1 | 1 | Female | Single | Copper Alloy | Non Specified - Single Edge | 0.76 Ám | 30 Áin | Press-Fit Wire Wrap | Black | Polyester Thermoplastic | Through Hole |
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | 7 | Cantilever | 7 | -40 °C | 105 ░C | 1 | 1 | Female | Single | Copper Alloy | Non Specified - Single Edge | 0.76 Ám | 30 Áin | Press-Fit | Black | Polyester Thermoplastic | Through Hole |
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | 7 | Cantilever | 7 | -40 °C | 105 ░C | 1 | 1 | Female | Single | Copper Alloy | Non Specified - Single Edge | 0.76 Ám | 30 Áin | Press-Fit | Black | Polyester Thermoplastic | Through Hole |
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | 7 | Cantilever | 7 | -40 °C | 105 ░C | 1 | 1 | Female | Single | Copper Alloy | Non Specified - Single Edge | 0.76 Ám | 30 Áin | Press-Fit | Black | Polyester Thermoplastic | Through Hole |
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | 7 | Cantilever | 7 | -40 °C | 105 ░C | 1 | 1 | Female | Single | Copper Alloy | Non Specified - Single Edge | 0.76 Ám | 30 Áin | Press-Fit Wire Wrap | Black | Polyester Thermoplastic | Through Hole |
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | 7 | Cantilever | 7 | -40 °C | 105 ░C | 1 | 1 | Female | Single | Copper Alloy | Non Specified - Single Edge | 0.76 Ám | 30 Áin | Press-Fit Wire Wrap | Black | Polyester Thermoplastic | Through Hole |
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | 7 | Cantilever | 7 | -40 °C | 105 ░C | 1 | 1 | Female | Single | Copper Alloy | Non Specified - Single Edge | 0.76 Ám | 30 Áin | Press-Fit Wire Wrap | Black | Polyester Thermoplastic | Through Hole |
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | 7 | Cantilever | 7 | -40 °C | 105 ░C | 1 | 1 | Female | Single | Copper Alloy | Non Specified - Single Edge | 0.76 Ám | 30 Áin | Press-Fit | Black | Polyester Thermoplastic | Through Hole |
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | 7 | Cantilever | 7 | -40 °C | 105 ░C | 1 | 1 | Female | Single | Copper Alloy | Non Specified - Single Edge | 0.76 Ám | 30 Áin | Press-Fit Wire Wrap | Black | Polyester Thermoplastic | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
746-007 Series
7 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
