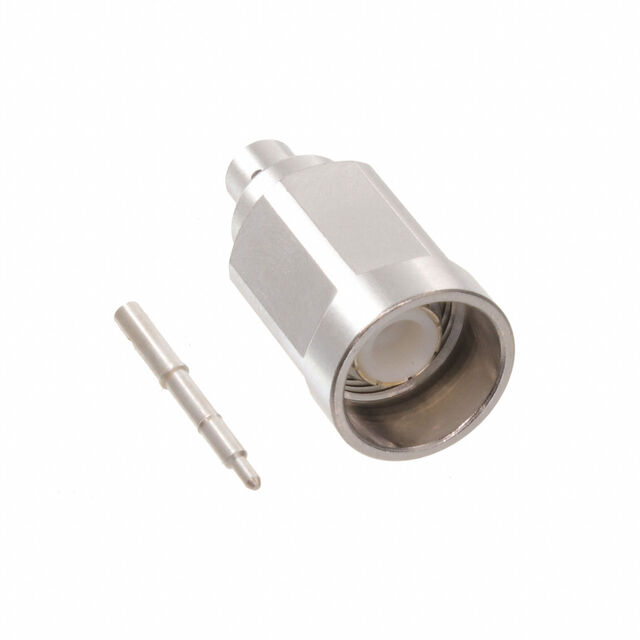

R180052007W

Active

Radiall USA, Inc.

NEX10 M STR THD SD.141

Search across all available documentation for this part.

Active

Radiall USA, Inc.

NEX10 M STR THD SD.141

Technical Specifications

Parameters and characteristics for this part

Specification	R180052007W

Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	NEX10
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	20 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Frequency - Max [Max]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Impedance	Number of Ports	Dielectric Material	Shield Termination	Center Contact Material	Body Material	Voltage Rating	Center Contact Plating	Connector Style	Contact Termination
Radiall USA, Inc. R180052007W	20 GHz	Male Pin Plug	-55 °C	125 °C	Snap-On	Free Hanging (In-Line)	50 Ohms	1	Polytetrafluoroethylene (PTFE)	Solder	Brass	Brass	500 V	Silver	NEX10	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NEX10 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
