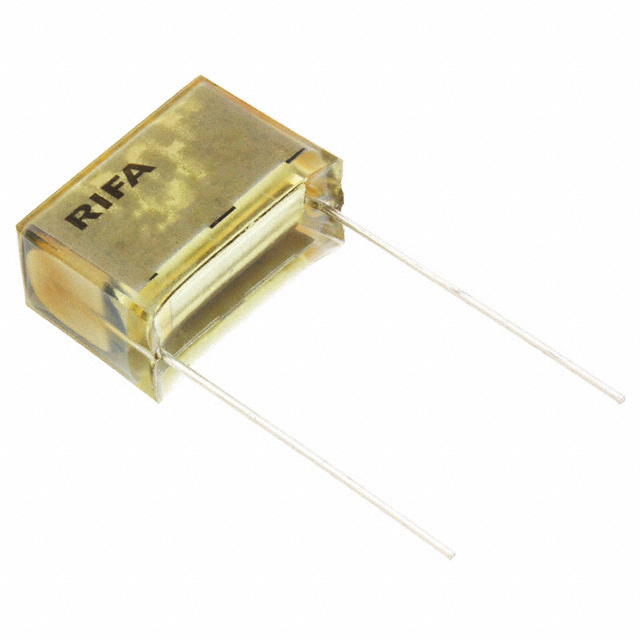

PME271YC5680MR30
ActiveKEMET
CAP FILM 0.068UF 20% 1KVDC RAD
Deep-Dive with AI
Search across all available documentation for this part.
PME271YC5680MR30
ActiveKEMET
CAP FILM 0.068UF 20% 1KVDC RAD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PME271YC5680MR30 |
|---|---|
| Applications | EMI, RFI Suppression |
| Capacitance | 0.068 µF |
| Dielectric Material | Paper, Metallized |
| Height - Seated (Max) [Max] [z] | 16.5 mm |
| Height - Seated (Max) [Max] [z] | 16.51 mm |
| Lead Spacing | 20.3 mm |
| Lead Spacing | 0.799 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Ratings | Y2 |
| Size / Dimension [x] | 0.945 in |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [y] | 11.3 mm |
| Size / Dimension [y] | 0.445 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage Rating - AC | 300 V |
| Voltage Rating - DC | 1 kVDC |
| Voltage Rating - DC | 1 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.93 | |
| 10 | $ 2.10 | |||
| 50 | $ 1.72 | |||
| 150 | $ 1.53 | |||
| 600 | $ 1.34 | |||
| 1050 | $ 1.27 | |||
| 2550 | $ 1.19 | |||
| 5100 | $ 1.13 | |||
Description
General part information
P272CP Series
0.068 µF Film Capacitor 300V 1000V (1kV) Paper, Metallized Radial
