846-025-558-104

Active

EDAC Inc.

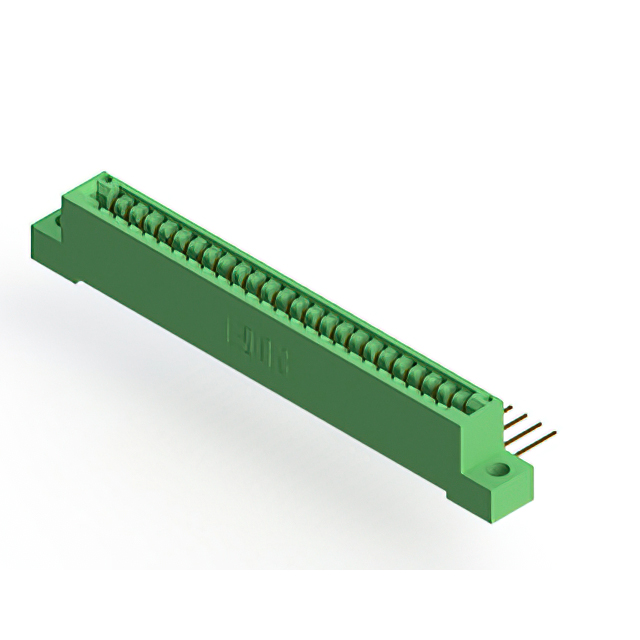

CARD EDGE CONNECTOR, 25 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.125 INCH PITCH, SOLDER TERMINAL, HOLE .156, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-025-558-104

Active

EDAC Inc.

CARD EDGE CONNECTOR, 25 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.125 INCH PITCH, SOLDER TERMINAL, HOLE .156, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-025-558-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions/Bay/Row [custom]	25
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Solder
Termination Rows	1

846-025 Series

Part	Contact Finish	Gender	Read Out	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Type	Number of Rows	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Contact Material	Mounting Type	Termination Rows	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Color	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature
EDAC Inc. 846-025-558-104	Gold	Female	Single	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Non Specified - Single Edge	1	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Copper Alloy	Through Hole Right Angle	1	25	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Green	125 °C	-40 °C
EDAC Inc. 846-025-520-602	Gold	Female	Single				Non Specified - Single Edge	1	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Copper Alloy	Through Hole	1	25	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Green	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 846-025-526-101	Gold	Female	Single				Non Specified - Single Edge	1	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Copper Alloy	Through Hole	1	25	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Green	125 °C	-40 °C
EDAC Inc. 846-025-558-608	Gold	Female	Single		4-40 Threaded Insert Top Mount Opening		Non Specified - Single Edge	1	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Copper Alloy	Through Hole Right Angle	1	25	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Green	125 °C	-40 °C
EDAC Inc. 846-025-558-604	Gold	Female	Single	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Non Specified - Single Edge	1	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Copper Alloy	Through Hole Right Angle	1	25	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Green	125 °C	-40 °C
EDAC Inc. 846-025-522-612	Gold	Female	Single		Side Mount Opening Unthreaded		Non Specified - Single Edge	1	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Copper Alloy	Through Hole	1	25	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Green	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 846-025-500-107	Gold	Female	Single		Flush Mount M3 Threaded Insert Top Opening		Non Specified - Single Edge	1	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Copper Alloy	Through Hole	1	25	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Green	125 °C	-40 °C
EDAC Inc. 846-025-526-602	Gold	Female	Single				Non Specified - Single Edge	1	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Copper Alloy	Through Hole	1	25	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Green	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 846-025-540-108	Gold	Female	Single		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Single Edge	1	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Copper Alloy	Through Hole	1	25	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Green	125 °C	-40 °C
EDAC Inc. 846-025-541-602	Gold	Female	Single				Non Specified - Single Edge	1	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Copper Alloy	Through Hole	1	25	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Green	125 °C	-40 °C	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 49.34

Description

General part information

846-025 Series

25 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
