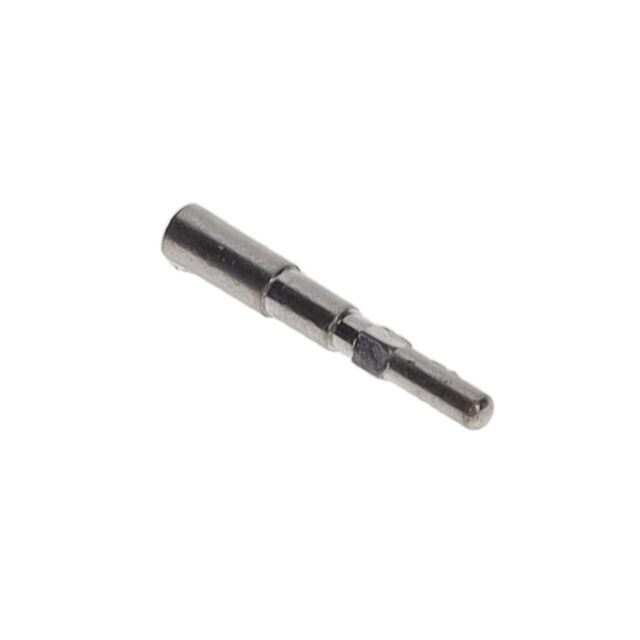

6192-0-15-01-21-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN RECEPT PIN .015-.021" .125"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6192-0-15-01-21-27-04-0

Accepts Pin Diameter [Max]	0.022 in
Accepts Pin Diameter [Max]	0.56 mm
Accepts Pin Diameter [Min]	0.38 mm
Accepts Pin Diameter [Min]	0.015 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.041 in
Flange Diameter [diameter]	1.04 mm
Length - Overall	6.99 mm
Length - Overall [x]	0.275 in
Mounting Hole Diameter [diameter]	0.032 "
Mounting Hole Diameter [diameter]	0.81 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth [z]	3.43 mm
Socket Depth [z]	0.135 in
Tail Diameter	0.64 mm
Tail Diameter	0.025 in
Tail Type	Standard Tail
Termination	Press-Fit

6192-0 Series

Part	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Socket Depth [z]	Socket Depth [z]	Termination	Length - Overall [x]	Length - Overall	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Contact Material	Contact Finish	Tail Diameter	Tail Diameter	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 6192-0-15-80-21-27-04-0	0.026 in	0.66 mm	0.76 Ám	30 Áin	3.43 mm	0.135 in	Press-Fit	0.275 in	6.99 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.79 mm	0.031 in	0.032 "	0.81 mm	Standard Tail	Beryllium Copper	Gold
Mill-Max Manufacturing Corp. 6192-0-15-01-21-02-04-0			2.54 µm	100 µin	3.43 mm	0.135 in	Press-Fit	0.275 in	6.99 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.79 mm	0.031 in	0.032 "	0.81 mm	Standard Tail	Beryllium Copper	Tin-Lead	0.64 mm	0.025 in	0.041 in	1.04 mm
Mill-Max Manufacturing Corp. 6192-0-15-80-21-14-04-0	0.026 in	0.66 mm	0.25 Ám	10 Áin	3.43 mm	0.135 in	Press-Fit	0.275 in	6.99 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.79 mm	0.031 in	0.032 "	0.81 mm	Standard Tail	Beryllium Copper	Gold
Mill-Max Manufacturing Corp. 6192-0-15-01-21-14-04-0			0.25 Ám	10 Áin	3.43 mm	0.135 in	Press-Fit	0.275 in	6.99 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.79 mm	0.031 in	0.032 "	0.81 mm	Standard Tail	Beryllium Copper	Gold	0.64 mm	0.025 in	0.041 in	1.04 mm
Mill-Max Manufacturing Corp. 6192-0-15-15-21-14-04-0	0.026 in	0.66 mm	0.25 Ám	10 Áin	3.43 mm	0.135 in	Press-Fit	0.275 in	6.99 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.79 mm	0.031 in	0.032 "	0.81 mm	Standard Tail	Beryllium Copper	Gold
Mill-Max Manufacturing Corp. 6192-0-15-01-21-27-04-0			0.76 Ám	30 Áin	3.43 mm	0.135 in	Press-Fit	0.275 in	6.99 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.79 mm	0.031 in	0.032 "	0.81 mm	Standard Tail	Beryllium Copper	Gold	0.64 mm	0.025 in	0.041 in	1.04 mm
Mill-Max Manufacturing Corp. 6192-0-15-80-21-84-04-0	0.026 in	0.66 mm	2.54 µm	100 µin	3.43 mm	0.135 in	Press-Fit	0.275 in	6.99 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.79 mm	0.031 in	0.032 "	0.81 mm	Standard Tail	Beryllium Copper	Tin
