1241.1607.11

Active

SCHURTER Inc.

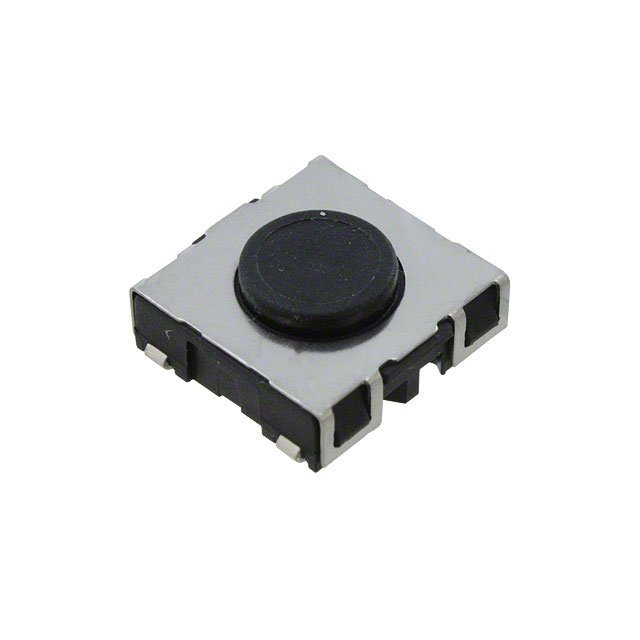

SWITCH TACTILE SPST-NO 0.05A 42V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH TACTILE SPST-NO 0.05A 42V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1241.1607.11	1241.160 Series

Actuator Height off PCB, Vertical	4.95 mm	4.95 mm
Actuator Height off PCB, Vertical	-	4.7 mm
Actuator Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	42 VDC, 0.05 A	0.05 - 42 VDC
Features	Tactile Feedback	Tactile Feedback
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP40, IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	220 gf	180 - 220 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	11.4 mm	11.4 mm
Outline [y]	11.4 mm	11.4 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.35 mm	0.35 mm
Termination Style	J Lead	J Lead, Gull Wing

SWITCH TACTILE N.O. SPST ROUND BUTTON J-LEAD 0.05A 30VAC 42VDC 0.12VA >1000000CYCLES 1.8N SMD BOX

Part	Mechanical Life	Operating Force	Actuator Material	Actuator Orientation	Ingress Protection	Actuator Height off PCB, Vertical [z]	Switch Function	Actuator Type	Features	Contact Rating @ Voltage	Illumination	Circuit	Termination Style	Outline [y]	Outline [x]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Mounting Type	Actuator Height off PCB, Vertical
SCHURTER Inc. 1241.1601.11	1000000 Cycles	180 gf	Polyphenylene Sulfide (PPS)	Top Actuated	IP40	4.7 mm	Off-Mom	Standard	Tactile Feedback	0.05 A, 42 VDC	Non-Illuminated	SPST-NO	J Lead	11.4 mm	11.4 mm	85 °C	-40 °C	0.35 mm	Surface Mount
SCHURTER Inc. 1241.1607.11	1000000 Cycles	220 gf	Polyphenylene Sulfide (PPS)	Top Actuated	IP67 - Dust Tight, Waterproof		Off-Mom	Standard	Tactile Feedback	0.05 A, 42 VDC	Non-Illuminated	SPST-NO	J Lead	11.4 mm	11.4 mm	85 °C	-40 °C	0.35 mm	Surface Mount	4.95 mm
SCHURTER Inc. 1241.1606.23	1000000 Cycles	220 gf	Polyphenylene Sulfide (PPS)	Top Actuated	IP67 - Dust Tight, Waterproof		Off-Mom	Standard	Tactile Feedback	0.05 A, 42 VDC	Non-Illuminated	SPST-NO	Gull Wing	11.4 mm	11.4 mm	85 °C	-40 °C	0.35 mm	Surface Mount	4.95 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
