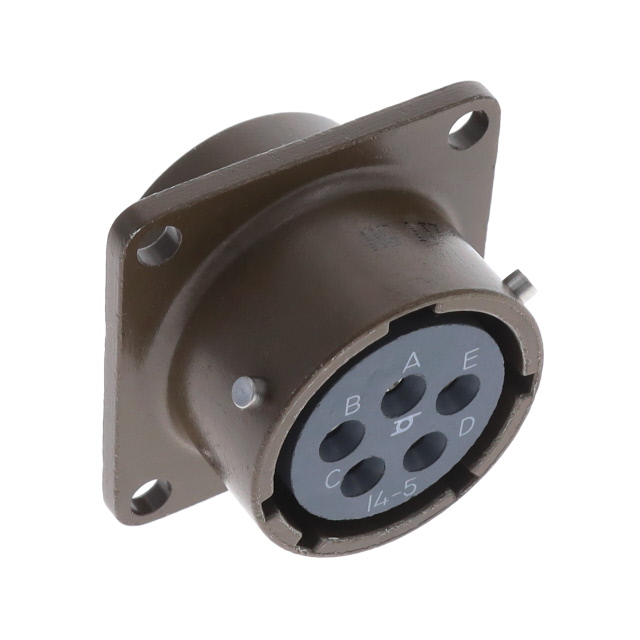

MS3112E14-5S

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3112 SERIES, BOX MOUNT RECEPTACLE, 5 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

MS3112E14-5S

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3112 SERIES, BOX MOUNT RECEPTACLE, 5 CONTACTS

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3112E14-5S

Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14-5
Voltage Rating	1400 V, 1000 VAC

MS3112E14 Series

Part	Mounting Feature	Orientation	Fastening Type	Number of Positions	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Connector Type	Color	Shell Finish	Contact Finish - Mating	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Voltage Rating	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Shell Size - Insert
ITT Cannon, LLC MS3112E14-19S	Flange	N	Bayonet Lock	19	Aluminum Alloy	1.27 µm	50 µin	7.5 A	Receptacle Female Sockets	Olive Drab	Olive Drab Cadmium	Gold	Environment Resistant	-55 °C	125 °C	Metal	600 VAC 850 V	19	14
ITT Cannon, LLC MS3112E14-12PW	Flange	W	Bayonet Lock	12	Aluminum Alloy	1.27 µm	50 µin	7.5 A 13 A	Male Pins Receptacle	Olive Drab	Olive Drab Cadmium	Gold	Environment Resistant	-55 °C	125 °C	Metal	600 VAC 850 V			14-12
ITT Cannon, LLC MS3112E14-5P	Flange	N	Bayonet Lock		Aluminum Alloy	1.27 µm	50 µin	13 A	Male Pins Receptacle	Olive Drab	Olive Drab Cadmium	Gold	Environment Resistant	-55 °C	125 °C	Metal	1000 VAC 1400 V			14-5
ITT Cannon, LLC MS3112E14-5S	Flange	N	Bayonet Lock		Aluminum Alloy	1.27 µm	50 µin	13 A	Receptacle Female Sockets	Olive Drab	Olive Drab Cadmium	Gold	Environment Resistant	-55 °C	125 °C	Metal	1000 VAC 1400 V			14-5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.21
		10	$ 40.46
		25	$ 38.71
		50	$ 37.47
		100	$ 36.22
		250	$ 34.22

Description

General part information

MS3112E14 Series

The MS3112E14-5S from ITT Cannon is MIL-DTL-26482 series I box mount receptacle with 5 contacts. MIL-DTL-26482 series I connectors are available in various shell styles and shell plating with 48hr, 500hr salt spray exposure. The unmated connectors and protective covers meet 48hrs exposure to MIL-STD-1344 method 1001 per MIL-DTL-26482. It has a well-proven electrical capability and is designed to withstand extreme shock, exposure and vibration.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
