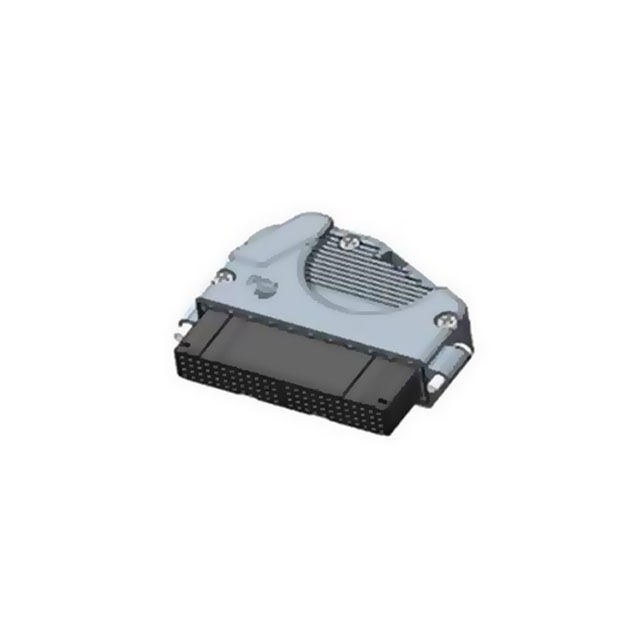

10087038-102LF

Active

Amphenol ICC (FCI)

CONN FFC

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN FFC

Technical Specifications

Parameters and characteristics for this part

Specification	10087038-102LF

Color	Black
Connector Type	Receptacle, Female Sockets
Features	Screwlocks
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Columns	24
Number of Positions	96
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	IDC

Part	Number of Positions	Pitch [x]	Pitch [x]	Number of Columns	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions Loaded	Material Flammability Rating	Termination	Connector Type	Mounting Type	Features
Amphenol ICC (FCI) 10087038-102LF	96	0.079 in	2 mm	24	105 ░C	-55 °C	Black	All	UL94 V-0	IDC	Receptacle Female Sockets	Free Hanging (In-Line)	Screwlocks
Amphenol ICC (FCI) 10087038-103LF	96	0.079 in	2 mm	24	105 ░C	-55 °C	Black	All	UL94 V-0	IDC	Receptacle Female Sockets	Free Hanging (In-Line)	Screwlocks
Amphenol ICC (FCI) 10087038-101LF	96	0.079 in	2 mm	24	105 ░C	-55 °C	Black	All	UL94 V-0	IDC	Receptacle Female Sockets	Free Hanging (In-Line)	Screwlocks
