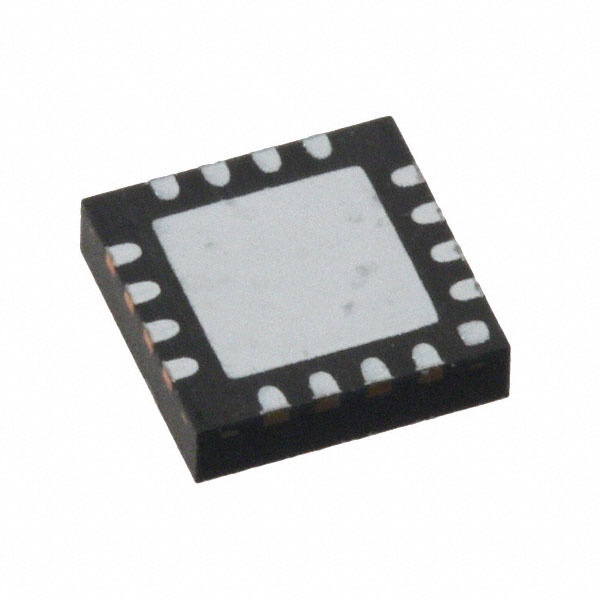

LX1744CLQ

Obsolete

Microsemi Corporation

IC LED DRIVER CTRLR PWM 16MLPQ

Search across all available documentation for this part.

Obsolete

Microsemi Corporation

IC LED DRIVER CTRLR PWM 16MLPQ

Technical Specifications

Parameters and characteristics for this part

Part	Internal Switch(s)	Mounting Type	Voltage - Supply (Min) [Min]	Voltage - Output	Applications	Voltage - Supply (Max) [Max]	Dimming	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Supplier Device Package	Type	Package / Case [custom]	Package / Case [custom]	Package / Case
Microsemi Corporation LX1744CPW		Surface Mount	1.6 V	25 V	Backlight	6 V	Analog PWM	2	85 °C	-40 °C	Step-Up (Boost)	14-TSSOP	DC DC Controller	0.173 "	4.4 mm	14-TSSOP
Microsemi Corporation LX1744CLQ		Surface Mount	1.6 V	25 V	Backlight	6 V	Analog PWM	2	85 °C	-40 °C	Step-Up (Boost)	16-MLPQ (4x4)	DC DC Controller			16-VQFN Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Driver IC 2 Output DC DC Controller Step-Up (Boost) Analog, PWM Dimming 16-MLPQ (4x4)

Technical documentation and resources

No documents available
