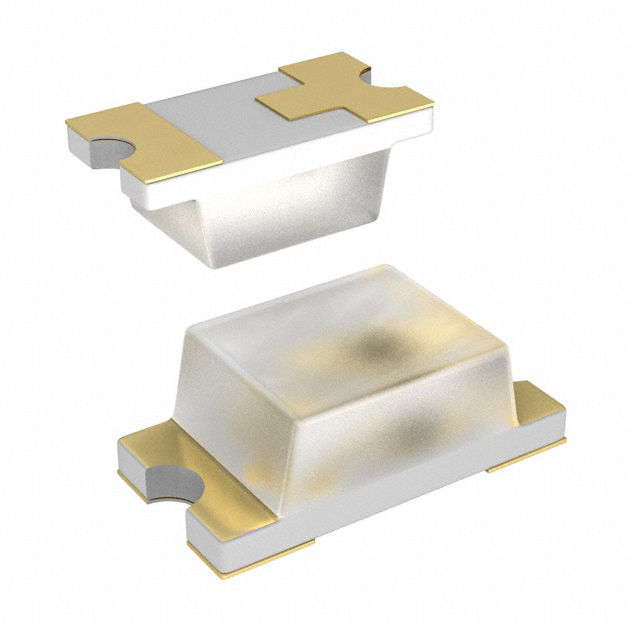

LTST-C191YKT
ObsoleteDiodes Inc
LED YELLOW CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LTST-C191YKT
ObsoleteDiodes Inc
LED YELLOW CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LTST-C191YKT |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.55 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.1 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 4.5 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 588 nm |
| Wavelength - Peak | 585 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LTST-C191 Series
Yellow 588nm LED Indication - Discrete 2.1V 0603 (1608 Metric)
Documents
Technical documentation and resources
