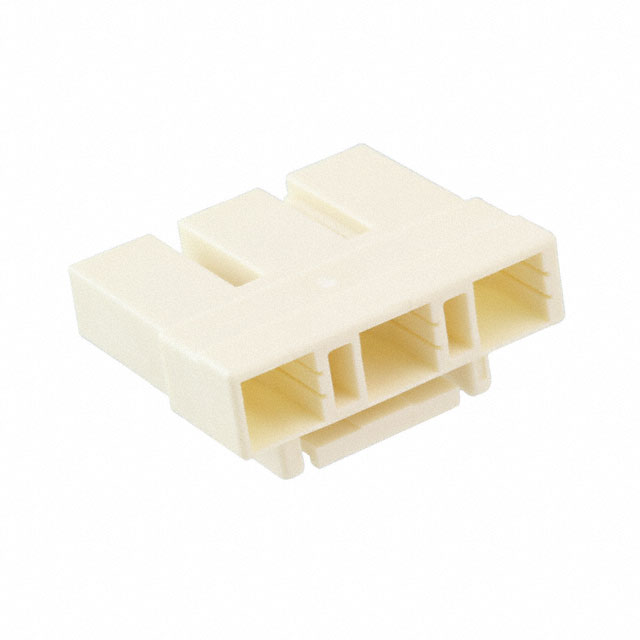

1903414-1
ActiveTE Connectivity Raychem Cable Protection
GHC 9.0 3POS PLUG HSG
Deep-Dive with AI
Search across all available documentation for this part.
1903414-1
ActiveTE Connectivity Raychem Cable Protection
GHC 9.0 3POS PLUG HSG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1903414-1 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Glow Wire Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 9 mm |
| Pitch [x] | 0.354 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
GRACE INERTIA 9.0 Series
3 Position, Plug, Housing, Crimp, Wire-to-Board, Tin (Sn), UL 94V-0, 9 mm [.354 in] Centerline, 1 Row, 600 VAC, Wire & Cable, Power, GRACE INERTIA 9.0
