MS3106F20-29S

Active

ITT Cannon, LLC

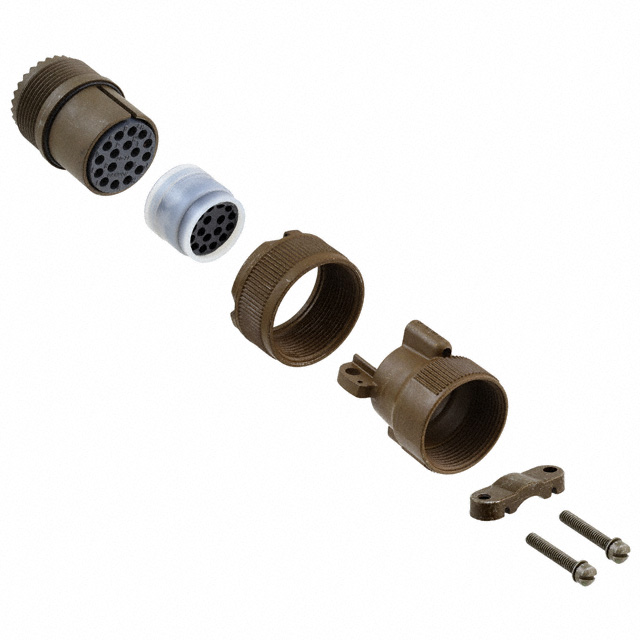

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, MIL-DTL-5015 SERIES, STRAIGHT PLUG, 17 CONTACTS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, MIL-DTL-5015 SERIES, STRAIGHT PLUG, 17 CONTACTS

Technical Specifications

Parameters and characteristics for this part

Part	Shell Finish	Qualification	Ingress Protection	Connector Type	Current Rating (Amps)	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Orientation	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shell Material	Features	Contact Finish - Mating	Primary Material	Number of Positions	Color	Grade	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shielding	Applications	Insert Material	Contact Material	Shell Size - Insert
ITT Cannon, LLC MS3106F20-33S	Olive Drab Cadmium	MIL-DTL-5015	Environment Resistant	Female Sockets Plug	22 A	33	20	N	500 VAC 700 VDC	-55 °C	125 °C	Free Hanging (In-Line)	Aluminum Alloy	Cable Clamp Coupling Nut	Silver	Metal	11	Olive Drab	Military
ITT Cannon, LLC MS3106F20-29S	Olive Drab Cadmium	MIL-DTL-5015	Environment Resistant	Female Sockets Plug	22 A			N	500 VAC 700 VDC	-55 °C	125 °C	Free Hanging (In-Line)	Aluminum Alloy	Cable Clamp Coupling Nut	Silver	Metal		Olive Drab	Military	29	20
ITT Cannon, LLC MS3106F2014S	Olive Drab Cadmium	MIL-DTL-5015	Environment Resistant	Female Sockets Plug	23 A 46 A			N	500 VAC 700 VDC	-55 °C	125 °C	Free Hanging (In-Line)	Aluminum Alloy	Backshell Coupling Nut	Silver	Metal		Olive Drab	Military	14	20	Unshielded	Aviation Industrial Marine Military	Plastic	Copper Alloy
ITT Cannon, LLC MS3106F20-4SY	Olive Drab Cadmium	MIL-DTL-5015	Environment Resistant	Female Sockets Plug	41 A			Y	900 VAC 1250 VDC	-55 °C	125 °C	Free Hanging (In-Line)	Aluminum Alloy	Cable Clamp Coupling Nut	Silver	Metal	4	Olive Drab	Military							20-4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17 Position Circular Connector Plug, Female Sockets Solder Cup
