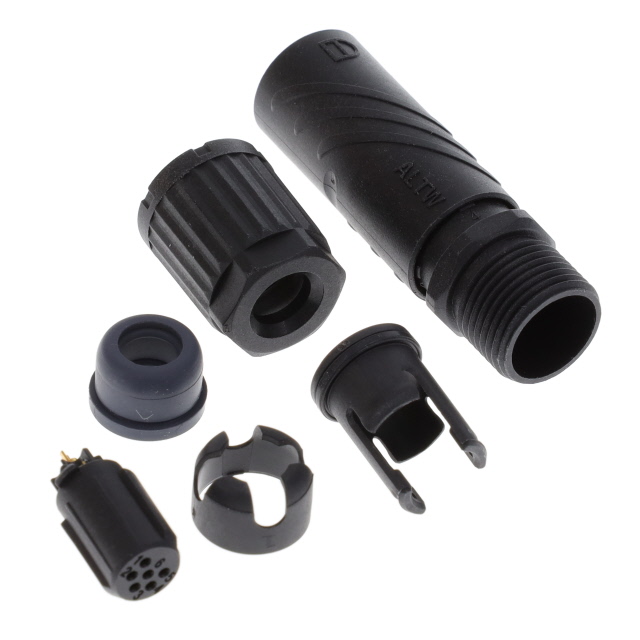

Q8U-06BFFA-QL8001
ActiveAmphenol LTW
HS-LOK FIELD INSTALLABLE SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q8U-06BFFA-QL8001
ActiveAmphenol LTW
HS-LOK FIELD INSTALLABLE SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q8U-06BFFA-QL8001 |
|---|---|
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [Max] [custom] | 0.236 in |
| Cable Opening [Max] [custom] | 6 mm |
| Cable Opening [Min] [custom] | 0.217 in |
| Cable Opening [Min] [custom] | 5.5 mm |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert [Max] [custom] | 6 |
| Shell Size - Insert [Min] [custom] | 8 |
| Shielding | Unshielded |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 20.83 | |
| 10 | $ 16.05 | |||
| 25 | $ 14.54 | |||
| 50 | $ 13.51 | |||
| 100 | $ 12.58 | |||
| 250 | $ 12.14 | |||
Description
General part information
Q8U-06BFFA Series
6 Position Circular Connector Plug, Female Sockets Solder Cup
