MNU10-250DFIX-BOTTLE

Active

CONN QC RCPT 10-12AWG 0.250 50PC

Search across all available documentation for this part.

Active

CONN QC RCPT 10-12AWG 0.250 50PC

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN QC RCPT 10-12AWG 0.250 50PC

Part	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Mounting Type	Features	Termination	Insulation	Gender	Tab Width	Tab Width	Length - Overall	Length - Overall [x]	Insulation Diameter	Insulation Diameter	Contact Finish	Tab Thickness	Tab Thickness	Color	Contact Material
3M MNU10-250DFIX-BOTTLE	12 AWG	10 AWG	Standard	Free Hanging (In-Line)	Butted Seam	Crimp	Fully Insulated	Female	6.35 mm	0.25 in
3M MNU10-250DMIX-BOTTLE	12 AWG	10 AWG	Standard	Free Hanging (In-Line)	Butted Seam	Crimp	Fully Insulated	Male	6.35 mm	0.25 in	26.67 mm	1.05 in	0.25 "	6.35 mm	Tin	0.032 in	0.81 mm	Yellow	Copper, ETP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

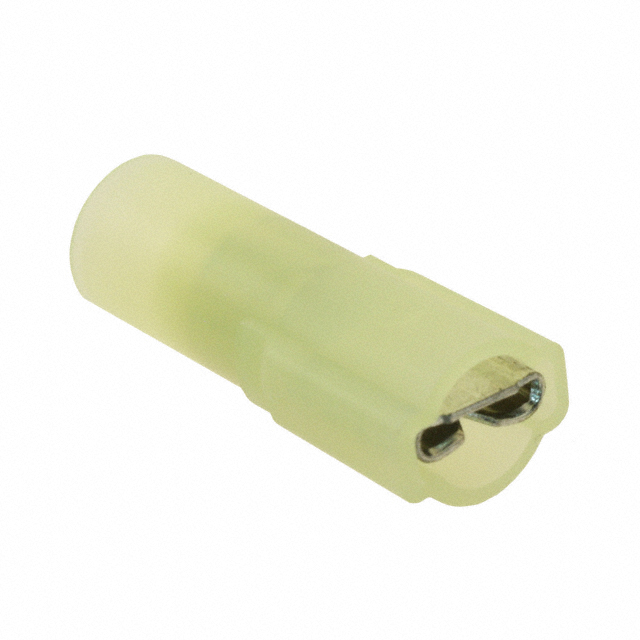

0.250" (6.35mm) Quick Connect Female 10-12 AWG Crimp Connector Fully Insulated

Technical documentation and resources

No documents available
