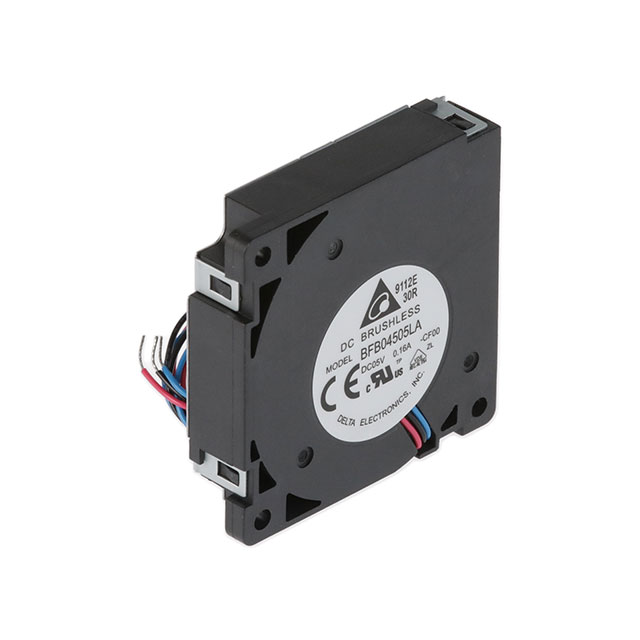

BFB04505LA-CF00

Active

Delta Electronics

FAN BLOWER 45X10.3MM 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BFB04505LA-CF00

Active

Delta Electronics

FAN BLOWER 45X10.3MM 5VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BFB04505LA-CF00

Air Flow	0.056 mł/min
Air Flow	2 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	21.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	0.4 W
RPM	3900 RPM
Size / Dimension [x]	45 mm
Size / Dimension [z]	45 mm
Static Pressure	0.212 in H2O
Static Pressure	52.8 Pa
Termination	3 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4 VDC
Weight	0.04 lb
Weight	18.14 g
Width [y]	10.3 mm

BFB04505 Series

Part	Bearing Type	Power (Watts)	Width [y]	Static Pressure	Static Pressure	Features	Material - Blade	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Material - Frame	Termination	Approval Agency	RPM	Weight	Weight	Lifetime @ Temp.	Size / Dimension [z]	Size / Dimension [x]	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Air Flow	Air Flow	Current Rating (Amps)
Delta Electronics BFB04505HA-CF00	Ball	0.8 W	10.3 mm	97.4 Pa	0.391 in H2O	Locked Rotor Protection Speed Sensor (Tach)	Plastic	Blower	70 °C	70 °C	-10 °C	-10 °C	30.5 dB	Plastic	3 Wire Leads	CE cURus VDE	5150 RPM	0.04 lb	18.14 g	30000 Hrs	45 mm	45 mm	4 VDC	5.5 V	5 V	0.084 m³/min	3 CFM
Delta Electronics BFB04505HHA-CZMR	Ball	1.25 W	10.3 mm	139.5 Pa	0.56 in H2O		Plastic	Blower	70 °C	70 °C	-10 °C	-10 °C	35.5 dB	Plastic	2 Position Rectangular Connector	CE cURus VDE	5900 RPM	0.04 lb	18.14 g	30000 Hrs	45 mm	45 mm	4 VDC	5.5 V	5 V	0.098 mł/min	3.5 CFM	0.25 A
Delta Electronics BFB04505LA-C	Ball	0.4 W	10.3 mm	52.8 Pa	0.212 in H2O		Plastic	Blower	70 °C	70 °C	-10 °C	-10 °C	21.5 dB(A)	Plastic	2 Wire Leads	CE CSA UL VDE	3900 RPM	0.04 lb	18.14 g	30000 Hrs	45 mm	45 mm	4 VDC	5.5 V	5 V	0.056 mł/min	2 CFM
Delta Electronics BFB04505MA-C	Ball	600 mW	10.3 mm	69.5 Pa	0.279 in H2O		Plastic	Blower	70 °C	70 °C	-10 °C	-10 °C	27 dB(A)	Plastic	2 Wire Leads	CE cURus VDE	4500 RPM	0.04 lb	18.14 g	30000 Hrs	45 mm	45 mm	4 VDC	5.5 V	5 V	0.073 mł/min	2.6 CFM	120 mA
Delta Electronics BFB04505LA-CF00	Ball	0.4 W	10.3 mm	52.8 Pa	0.212 in H2O	Locked Rotor Protection Speed Sensor (Tach)	Plastic	Blower	70 °C	70 °C	-10 °C	-10 °C	21.5 dB(A)	Plastic	3 Wire Leads	CE CSA UL VDE	3900 RPM	0.04 lb	18.14 g	30000 Hrs	45 mm	45 mm	4 VDC	5.5 V	5 V	0.056 mł/min	2 CFM
Delta Electronics BFB04505HHA-CF00	Ball	1.25 W	10.3 mm	139.5 Pa	0.56 in H2O	Locked Rotor Protection Speed Sensor (Tach)	Plastic	Blower	70 °C	70 °C	-10 °C	-10 °C	35.5 dB	Plastic	3 Wire Leads	CE cURus VDE	5900 RPM	0.04 lb	18.14 g	30000 Hrs	45 mm	45 mm	4 VDC	5.5 V	5 V	0.098 mł/min	3.5 CFM	0.25 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	504	$ 9.41

Description

General part information

BFB04505 Series

Fan Blower 5VDC Square - 45mm L x 45mm H Ball 2.0 CFM (0.056m³/min) 3 Wire Leads
