AMPH-4343-025

Active

Pactech

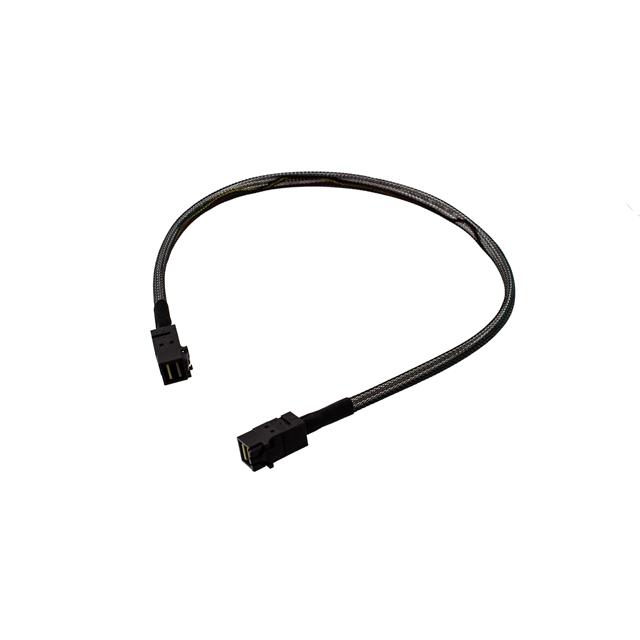

AMPH HD MINISAS STR TO STR 0.25M

Search across all available documentation for this part.

Active

Pactech

AMPH HD MINISAS STR TO STR 0.25M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AMPH-4343-025	AMPH-4343 Series

Cable Connectors	miniSAS HD 4i	miniSAS HD 4i, MiniSAS HD
Cable Type	Round	Round
Color	Black	Black
Connector Type	Plug to Plug	Plug to Plug
Fastening Type	Latch Lock	Latch Lock
Features	12Gbps SAS3.0, Amphenol SFF-8643 Connectors	12Gbps SAS3.0, Amphenol SFF-8643 Connectors, Amphenol SFF-8087 Connectors, 12Gbps
Frequency - Max	-	12 Gbps
Gender	Male to Male	Male to Male
Length	-	210 - 475 mm
Length	-	8.268 in
Length	-	1.15 - 1.56 ft
Length [x]	250 mm	250 - 500 mm
Length [x]	9.84 in	0.698 - 9.84 ft
Length [x]	9.843 in	9.843 in
Number of Positions	36	36
Shielding	Shielded	Shielded
Usage	Internal	Internal
Wire Gauge	-	30 AWG

AMPH HD MINISAS STR TO STR 0.21M

Part	Gender	Usage	Cable Type	Features	Cable Connectors	Length	Length	Length [x]	Connector Type	Fastening Type	Shielding	Number of Positions	Color	Length	Wire Gauge	Frequency - Max [Max]	Length [x]	Length [x]
Pactech AMPH-4343-210	Male to Male	Internal	Round	12Gbps SAS3.0, Amphenol SFF-8643 Connectors	miniSAS HD 4i	210 mm	8.268 in	0.698 ft	Plug to Plug	Latch Lock	Shielded	36	Black
Pactech AMPH-4343-SL-035	Male to Male	Internal	Round	12Gbps SAS3.0, Amphenol SFF-8643 Connectors	miniSAS HD 4i	350 mm			Plug to Plug	Latch Lock	Shielded	36	Black	1.15 ft
Pactech AMPH-4343RA-475	Male to Male	Internal	Round	12Gbps, Amphenol SFF-8087 Connectors	MiniSAS HD	475 mm			Plug to Plug	Latch Lock	Shielded	36	Black	1.56 ft	30 AWG	12 Gbps
Pactech AMPH-4343-050	Male to Male	Internal	Round	12Gbps SAS3.0, Amphenol SFF-8643 Connectors	miniSAS HD 4i			1.64 ft	Plug to Plug	Latch Lock	Shielded	36	Black				500 mm
Pactech AMPH-4343-025	Male to Male	Internal	Round	12Gbps SAS3.0, Amphenol SFF-8643 Connectors	miniSAS HD 4i			9.84 in	Plug to Plug	Latch Lock	Shielded	36	Black				250 mm	9.843 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36 Position miniSAS HD 4i Plug to Plug 0.820' (250.00mm, 9.843") Black Shielded
