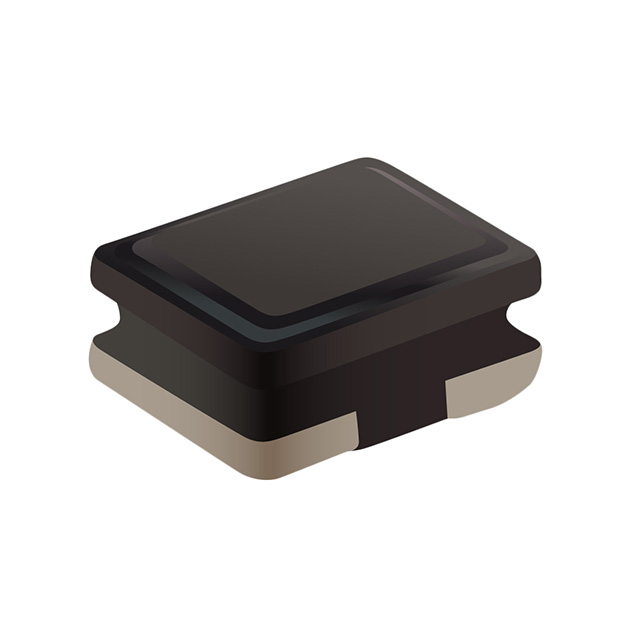

SRN2009T-1R0M - SRN2009T

SRN2009T-1R0M

Active
Bourns Inc.

INDUCTOR, 1UH, 1.4A, SEMI-SHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+2
SRN2009T-1R0M - SRN2009T

SRN2009T-1R0M

Active
Bourns Inc.

INDUCTOR, 1UH, 1.4A, SEMI-SHLD

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationSRN2009T-1R0M
Current - Saturation (Isat)1.4 A
Current Rating (Amps)1.4 A
DC Resistance (DCR)65 mOhm
Frequency - Self Resonant200 MHz
Height - Seated (Max) [Max] [z]0.037 "
Height - Seated (Max) [Max] [z]0.95 mm
Inductance1 µH
Inductance Frequency - Test1 MHz
Material - CoreFerrite
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / Case0806 (2016 Metric)
Q @ Freq20, 1 MHz
ShieldingShielded
Size / Dimension [x]2 mm
Size / Dimension [x]0.079 in
Size / Dimension [y]0.063 in
Size / Dimension [y]1.6 mm
Supplier Device Package0806 (2016 Metric)
Tolerance20 %
TypeWirewound, Drum Core

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.35
10$ 0.29
25$ 0.26
50$ 0.24
100$ 0.21
250$ 0.21
500$ 0.18
1000$ 0.15
Digi-Reel® 1$ 0.35
10$ 0.29
25$ 0.26
50$ 0.24
100$ 0.21
250$ 0.21
500$ 0.18
1000$ 0.15
Tape & Reel (TR) 2000$ 0.15
4000$ 0.14
6000$ 0.14
10000$ 0.13
50000$ 0.12
NewarkEach (Supplied on Cut Tape) 1$ 0.33
10$ 0.24
25$ 0.23
50$ 0.22
100$ 0.21

Description

General part information

SRN2009T Series

1 µH Shielded Drum Core, Wirewound Inductor 1.4 A 65mOhm 0806 (2016 Metric)
