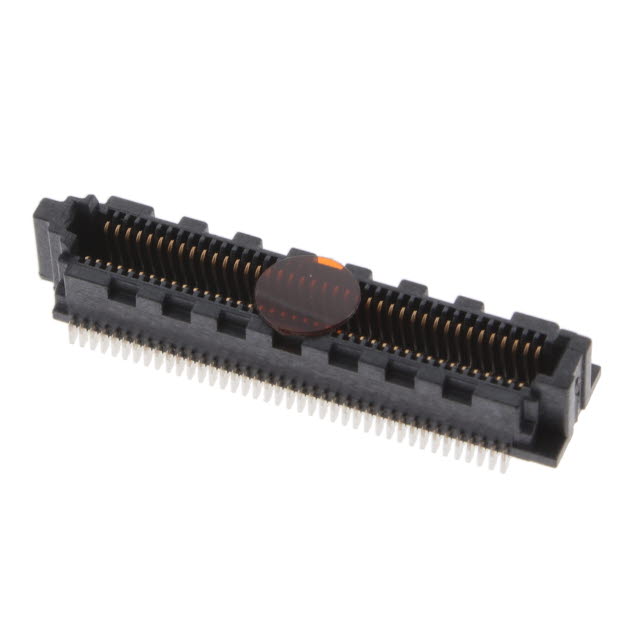

SS4-40-3.00-L-D-K-TR

Active

Samtec Inc.

BOARD-TO-BOARD CONNECTOR, SS4 SERIES, SURFACE MOUNT, RECEPTACLE, 80, 0.4 MM, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Samtec Inc.

BOARD-TO-BOARD CONNECTOR, SS4 SERIES, SURFACE MOUNT, RECEPTACLE, 80, 0.4 MM, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	SS4-40-3.00-L-D-K-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place
Height Above Board	2.85 mm
Height Above Board	0.112 in
Mated Stacking Heights	4.5 mm, 4 mm, 5.5 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Features	Height Above Board	Height Above Board	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Mated Stacking Heights
Samtec Inc. SS4-40-3.50-L-D-K-TR	Pick and Place	3.35 mm	0.132 in	Surface Mount	10 Áin	0.25 Ám	Outer Shroud Contacts Socket	80	2	0.016 in	0.4 mm	Gold	4.5 mm 5.5 mm 6 mm
Samtec Inc. SS4-40-3.00-L-D-K-TR	Pick and Place	2.85 mm	0.112 in	Surface Mount	10 Áin	0.25 Ám	Outer Shroud Contacts Socket	80	2	0.016 in	0.4 mm	Gold	4 mm 4.5 mm 5.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
