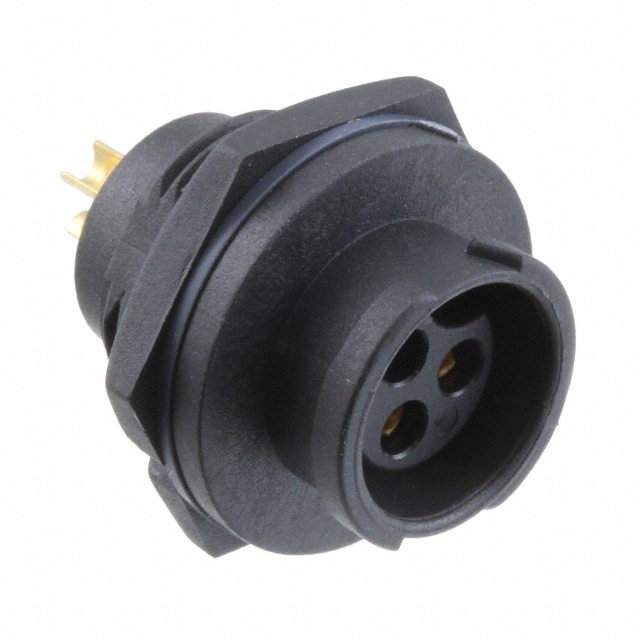

BB-03RMFS-QC8001

Active

Amphenol LTW

CONN RCPT FMALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	BB-03RMFS-QC8001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Shell Material	Number of Positions	Shielding	Primary Material	Mounting Feature	Ingress Protection	Current Rating (Amps)	Color	Shell Size - Insert	Voltage Rating	Orientation	Material Flammability Rating	Connector Type	Insert Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Material
Amphenol LTW BB-03RMFS-QC8001	Glass Filled Nylon Polyamide (PA)	3	Unshielded	Plastic	Bulkhead - Rear Side Nut	IP68 - Dust Tight Waterproof	10 A	Black	B	300 VAC	Keyed	UL94 V-0	Receptacle Female Sockets	Polyamide (PA) Nylon Glass Filled	Gold	-40 °C	105 ░C	Push-Pull	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (Data) Position Circular Connector Receptacle, Female Sockets Solder Cup
