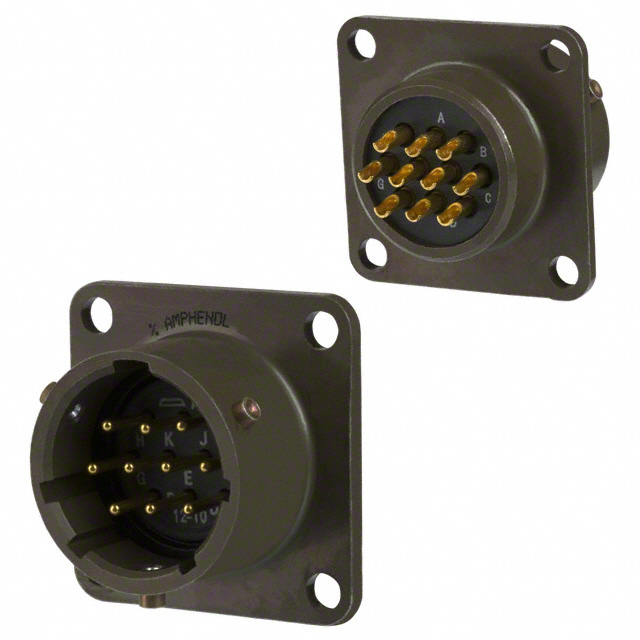

MS3112E-12-10P

Active

Amphenol Aerospace Operations

CONN RCPT MALE 10P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN RCPT MALE 10P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3112E-12-10P

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shielding	Unshielded

Part	Shell Material	Orientation	Contact Finish - Mating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shielding	Number of Positions	Qualification	Insert Material	Connector Type	Shell Finish	Mounting Feature	Grade	Fastening Type	Primary Material	Ingress Protection	Applications
Amphenol Aerospace Operations MS3112E-12-10P	Aluminum	N	Gold	Olive Drab	-55 °C	125 °C	Copper Alloy	Unshielded	10	MIL-DTL-26482 Series I	Neoprene	Male Pins Receptacle	Olive Drab Chromate over Cadmium	Flange	Military	Bayonet Lock	Metal	Environment Resistant	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 Position Circular Connector Receptacle, Male Pins Solder Cup
