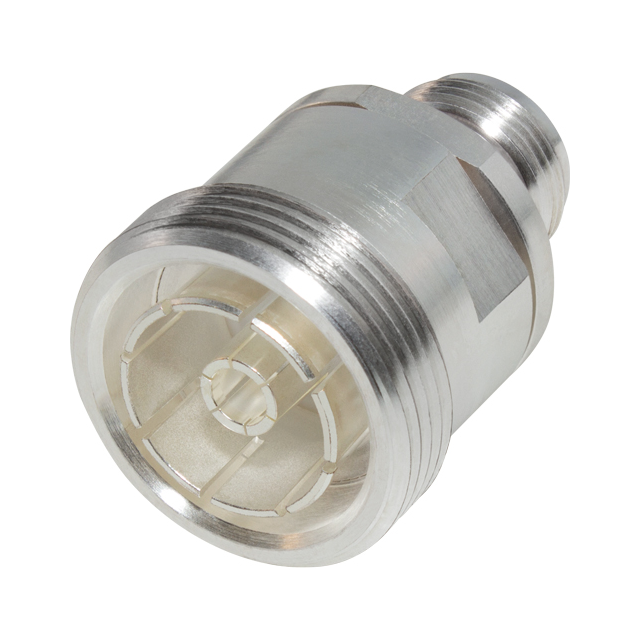

RFD-1673-2

Active

RF Industries

7/16 DIN FEMALE-N FEMALE

Search across all available documentation for this part.

Active

RF Industries

7/16 DIN FEMALE-N FEMALE

Technical Specifications

Parameters and characteristics for this part

Specification	RFD-1673-2

Adapter Series	N to 7/16 DIN
Adapter Type	Jack to Jack
Body Finish	Silver
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, 7/16 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

7/16 DIN FEMALE-N FEMALE

Part	Convert From (Adapter End)	Center Gender	Center Contact Material	Conversion Type	Impedance	Convert To (Adapter End)	Body Finish	Mounting Type	Center Contact Plating	Adapter Type	Frequency - Max [Max]	Body Material	Adapter Series	Style	Dielectric Material
RF Industries RFD-1673-2	Female Socket, N Jack	Female to Female	Beryllium Copper	Between Series	50 Ohms	7/16 Jack, Female Socket	Silver	Free Hanging (In-Line)	Silver	Jack to Jack	7.5 GHz	Brass	N to 7/16 DIN	Straight	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To 7/16 Jack, Female Socket 50 Ohms
